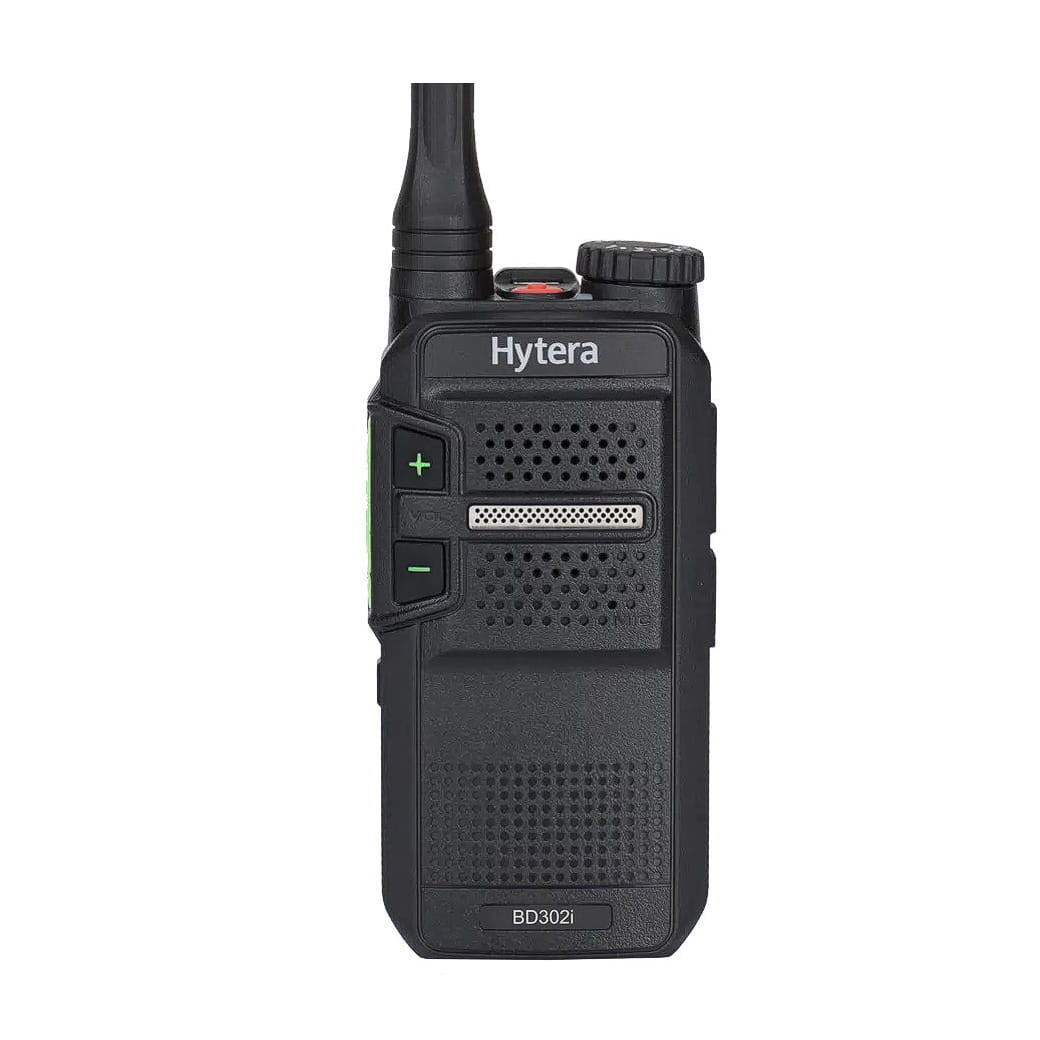

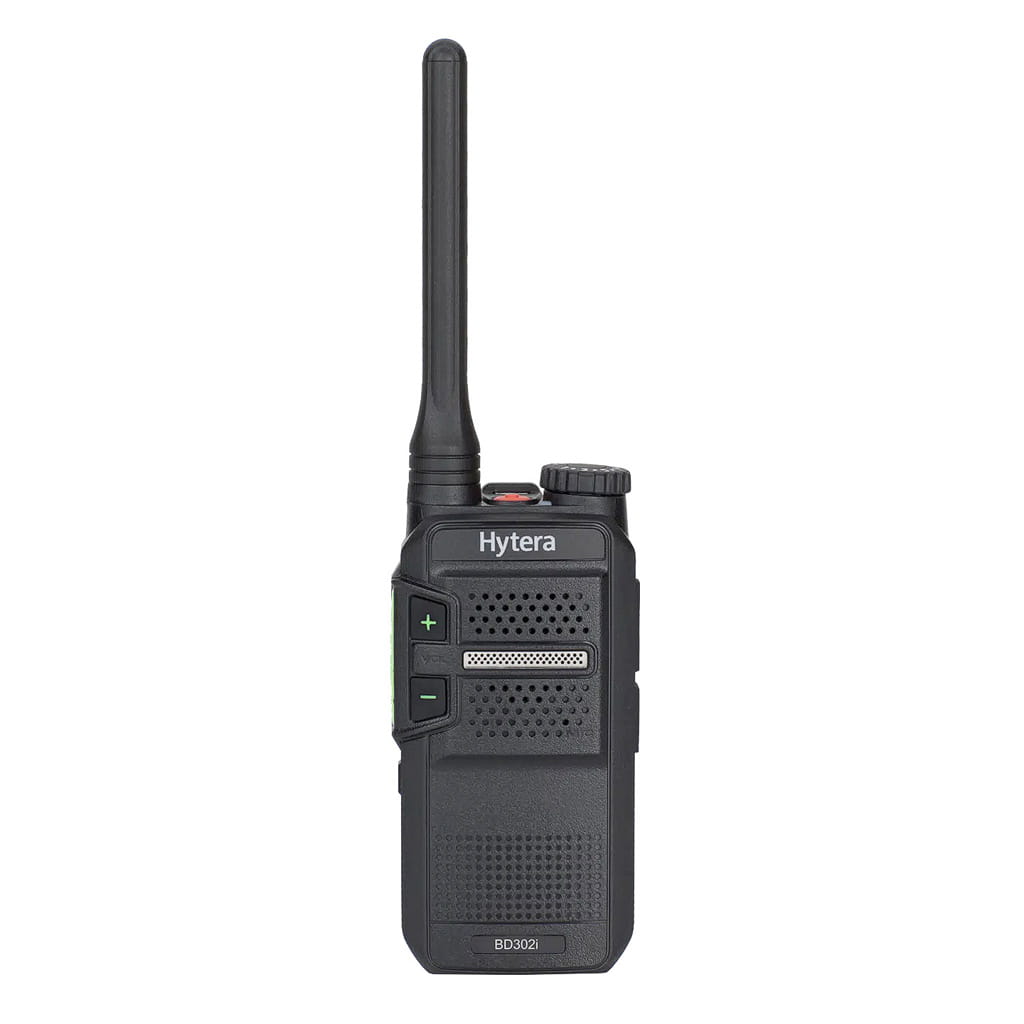

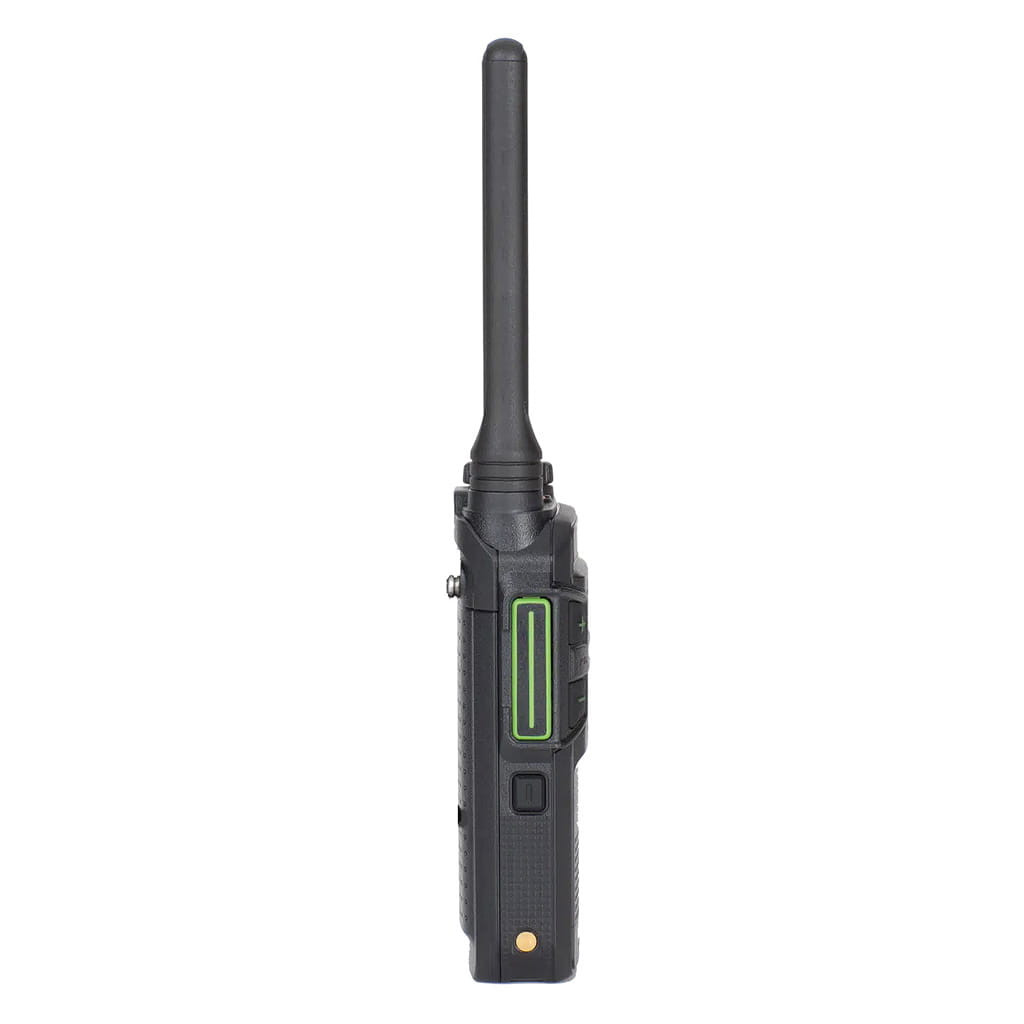

Hytera BD302i DMR Digital Portable Two-Way Radio (UHF 400-470 MHz)
The BD302i is an entry-level DMR digital portable radio for retail stores, hotels, and small business teams that need clear communication without complexity. A very compact device weighing 140 g, with a digital-mode battery life of 16 hours, allowing it to be used throughout an entire shift without recharging. The dual-mode design works with both analog and digital radios, making it practical for businesses transitioning from older systems to DMR technology.
Authorized Dealer
Fast Nationwide Shipping
Technical Support & Programming
Bulk Pricing Available
Data Sheet
Why Professionals Choose the Hytera BD302i
The BD302i fits in a front pocket and weighs less than a smartphone. It's built for retail floor managers, hospitality staff, and security teams who move around all day and can't afford dead radios or complicated controls. The radio switches on, you press PTT, and it works — no display menus to navigate, no training manual required.
The battery lasts for 16 hours of talk time on a single charge, compared to the usual 10–12 hours. Long battery life, sound clarity, a compact design, and a very modest price make the Hytera BD302i one of the most cost-effective solutions for businesses across various industries.
Supporting both analog and digital (DRM) modes, the device enables a phased replacement of your radio fleet. In other words, gradually introduce digital radio stations as circumstances allow, while maintaining the functionality of older devices. How it works: Configure the BD302i to match your existing analog frequencies. The device automatically detects whether an incoming signal is analog or digital and switches to the appropriate receive mode. The availability of 48 channels allows teams using 4–6 channels to create private channels for supervisors or dedicated channels for emergencies.
An IP54 ingress protection rating and compliance with the MIL-STD-810-G standard mean that the portable radio can be operated in rain and dusty environments and is protected against accidental drops. A power output of 2 watts is sufficient for operations at individual sites, such as retail stores, hotels, school campuses, and event venues. The Hytera BD302i is not designed for multi-site networks or long-range communication; however, if reliable push-to-talk communication is required within a building or on-site, this model is a practical choice.
Specification
General
| Frequency Range | UHF 400-470 MHz |
| Channel Capacity | 48 Channels (24 Analog, 24 Digital) |
| Zone Capacity | 3 Zones, 16 Channels per Zone |
| Channel Spacing | 25 / 12.5 kHz |
| Operating Voltage | 3.8V DC |
| Battery | 2200mAh Li-ion (BL2202) |
| Battery Life (5-5-90 Duty Cycle) | Up to 16 hours (Digital mode), 12 hours (Analog mode) |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Antenna Impedance | 50 Ω |
| Dimensions (H/W/D) | 101 x 49 x 26 mm (3.97" x 1.93" x 1.02") |
| Weight (with antenna & battery) | 140g (5 oz) |
Transmitter
| RF Power Output | 2W (High), 0.5W (Low) |
| Modulation (Digital) | 4FSK |
| Modulation (Analog) | 11K0F3E / 16K0F3E |
Receiver
| Sensitivity (Digital) | 0.22 µV (BER 5%) |
| Sensitivity (Analog) | 0.22 µV (Typical) @ 12 dB SINAD, 0.4 µV @ 20 dB SINAD |
Compliance
| Standard | Coverage |
| MIL-STD-810 C/D/E/F/G | Compliant (shock, vibration, temperature, humidity) |
| FCC Certification | Part 90 certified |
| IP Rating | IP54 (dust and water resistance) |
| Drop Test | Meets MIL-STD-810-G requirements |
FCC Licensing and Compliance Support
Operation of the Hytera BD302i on licensed frequencies in the United States requires an FCC Part 90 license. This applies to most business and commercial radio uses, including retail stores, hotels, schools, security companies, and event venues.
As an authorized Hytera dealer, AXDIGITAL LLC assists customers throughout the licensing process, from selecting the appropriate UHF frequency band to submitting the FCC application. Whether you are installing a new DMR system or expanding an existing analog network, our team ensures that the equipment you purchase complies with federal regulations and avoids communication downtime due to unlicensed operation.
The BD302i is FCC Part 90 certified and complies with digital and analog modulation standards. For teams operating radio communication across multiple sites or departments, we provide recommendations on frequency coordination to prevent interference between channels and ensure reliable push-to-talk service.
Contact us to discuss licensing requirements for your organization.
FAQ
What is the communication range of the BD302i?
The BD302i has 2 watts of power, which typically provides 1-3 miles of range in open areas and 200,000-300,000 square feet indoors, depending on building construction. Range increases significantly when using a DMR Tier II repeater. For single-site operations like retail stores, hotels, or school campuses, the BD302i covers the property without issue.
Can I use the BD302i with my existing analog radios?
Yes. The BD302i operates in both analog and digital modes on the same hardware. Program it to match your current analog frequencies and CTCSS/DCS codes, and it will communicate with your existing fleet. The radio automatically detects incoming analog or digital signals and switches modes accordingly, making it easy to phase in DMR technology without replacing your entire system at once.
Does the BD302i require computer programming?
Yes. The BD302i must be programmed using Hytera's CPS (Customer Programming Software) and a PC69 programming cable. Programming sets your frequencies, channels, privacy codes, power levels, and features like VOX or scanning. AXDIGITAL LLC provides programming support for customers — contact us to discuss configuration options for your radio system.
