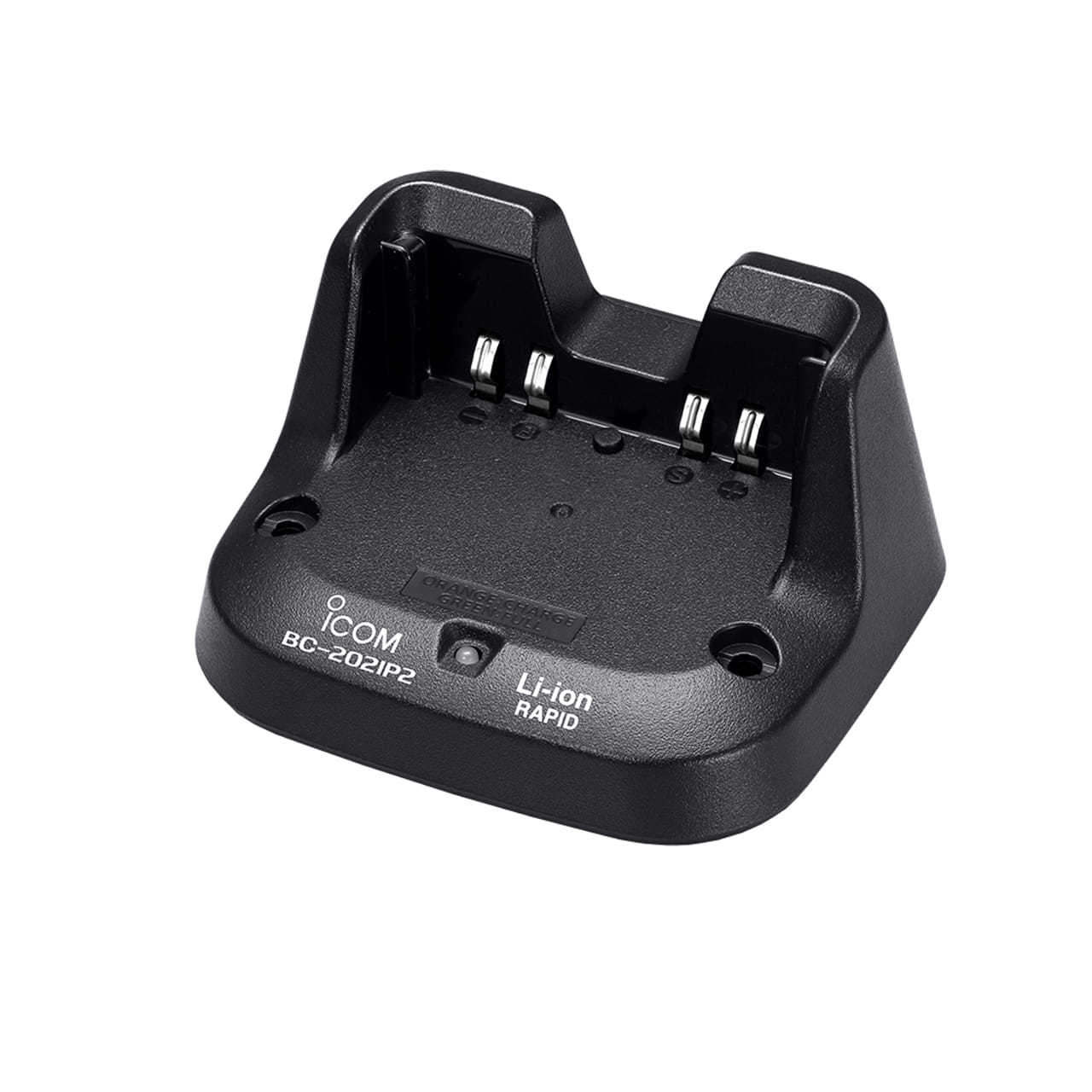

Icom BC-202IP2 Desktop Rapid Charger for IP100H / IP503H / ID-51A Series
The BC-202IP2 is the OEM desktop rapid charger for Icom IP-series and D-STAR portable radios using BP-271, BP-272, and BP-307 Li-Ion battery packs. It delivers 940 mA charge current and completes a full cycle in 5 hours, with smart charging circuitry that monitors voltage and temperature to protect the battery pack throughout. The US version (Version 12) ships with the BC-123SA AC adapter and supports charging with the transceiver powered on for receive.
Authorized Dealer
Fast Nationwide Shipping
Technical Support & Programming
Bulk Pricing Available
Why Professionals Choose the Icom Charger BC-202IP2
Operations running IP100H WLAN transceivers or IP503H LTE/PoC handsets typically keep radios in use across back-to-back shifts — a hospital security desk, a port dispatcher, or a campus safety team. The BC-202IP2 covers all three BP-series Li-Ion packs (BP-271, BP-272, BP-307) in a single charger, so a team lead doesn't need separate units for different battery generations in the same fleet.
Charge current runs at 940 mA with smart charging circuitry that adjusts for power supply voltage variation across the 12.0–16.0V DC input range. The 5-hour charge time applies at rapid charging rate. The built-in protection circuit monitors temperature and voltage to cut off before overcharge — which matters for BP-307 high-capacity packs that would otherwise stress under fixed-profile charging. The transceiver can remain powered on in receive mode during charging, keeping the radio available for monitoring without pulling it off the charger.

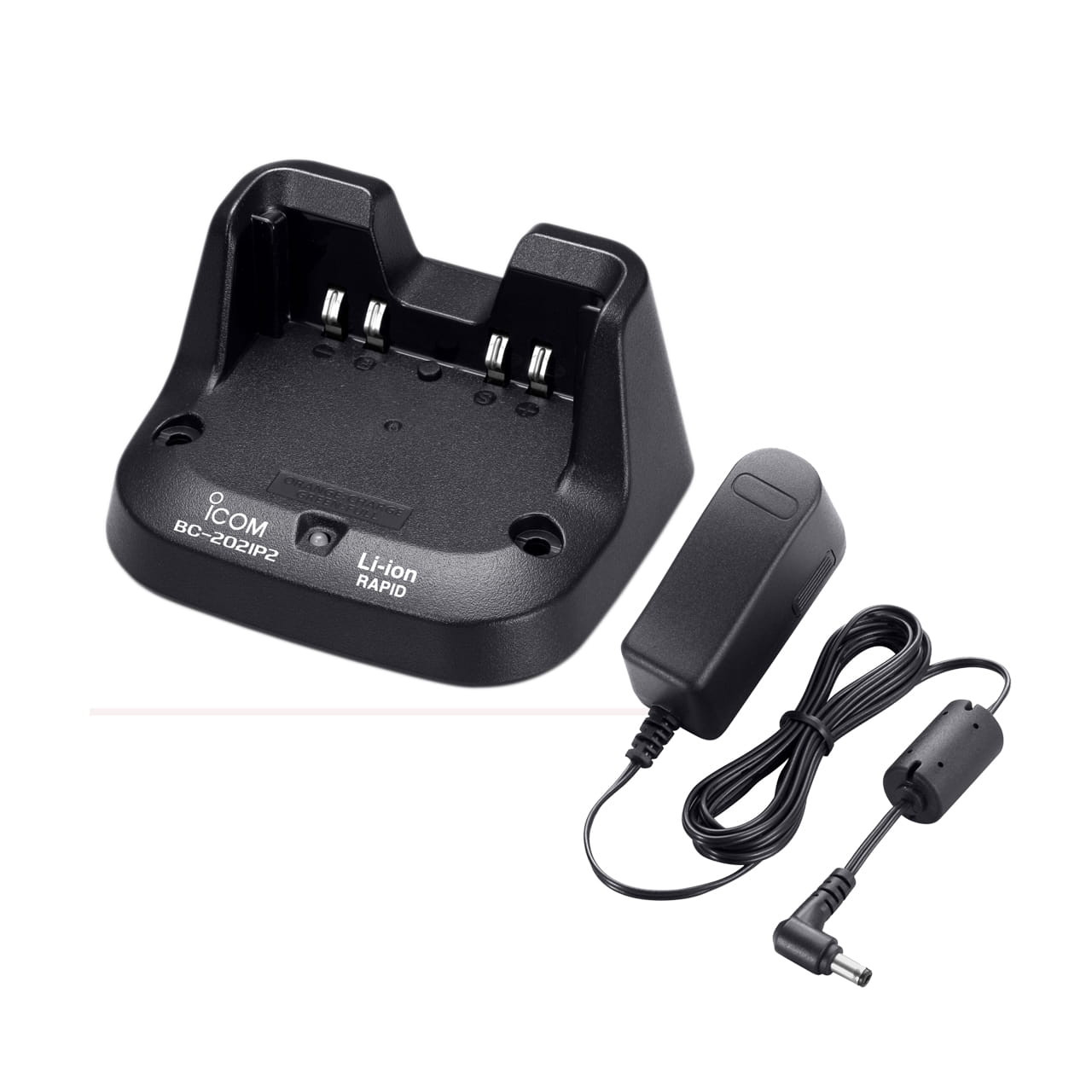

Input comes from the BC-123SA AC adapter (included, US Version 12), or optionally from vehicle power via the CP-22, CP-23L, or CP-25H cigarette lighter cables — useful for mobile command posts or vehicle-mounted charging stations. The BC-06 and BC-242 AC adapters are also compatible as alternatives.
Third-party BC-202 replacements lack the smart charging IC specific to this platform, which affects BP-307 pack longevity at 3150 mAh capacity. The BC-202IP2 is the original Icom part, engineered for the BP-271/BP-272/BP-307 battery family.
AXDIGITAL is an authorized Icom dealer supplying OEM accessories for IP-series, D-STAR, and commercial radio fleets across the US.
Specification
Charger — Desktop Rapid Charger BC-202IP2
| Charger Type | Single-unit desktop charger |
| Chemistry | Li-Ion only |
| Number of Slots | 1 |
| Charge Current | 940 mA |
| Power Supply Voltage | 12.0–16.0 V DC |
| Charge Time | 5 hours (at rapid charging) |
| Operating Temperature | +10°C – +40°C |
| AC Adapter Included | BC-123SA (US plug) — Version 12 |
| Optional Power Sources | CP-22, CP-23L, CP-25H (cigarette lighter cables); BC-06, BC-242 (AC adapters) |
| Receive-While-Charging | Yes |
| Compatible Batteries | BP-271, BP-272, BP-307 |
FAQ
Is the BC-202IP2 compatible with the IC-705 and ID-52A?
The BC-202IP2 charges BP-271, BP-272, and BP-307 Li-Ion packs. The IC-705 uses BP-272 and BP-307, and the ID-52A uses BP-272 — both are within the battery compatibility range. However, IC-705 and ID-52A are not listed on the official Icom BC-202IP2 compatible products page at icomamerica.com. Contact our team to confirm compatibility for your specific setup before ordering.
Can the BC-202IP2 charge the radio with the transceiver turned on?
Yes. The BC-202IP2 supports receive-while-charging — the transceiver can remain powered on during the charge cycle, allowing the radio to monitor the channel without being taken off the charger. This is a designed feature per Icom's official BC-202IP2 specification. Transmit is not supported during charging; the radio must be on receive only.
