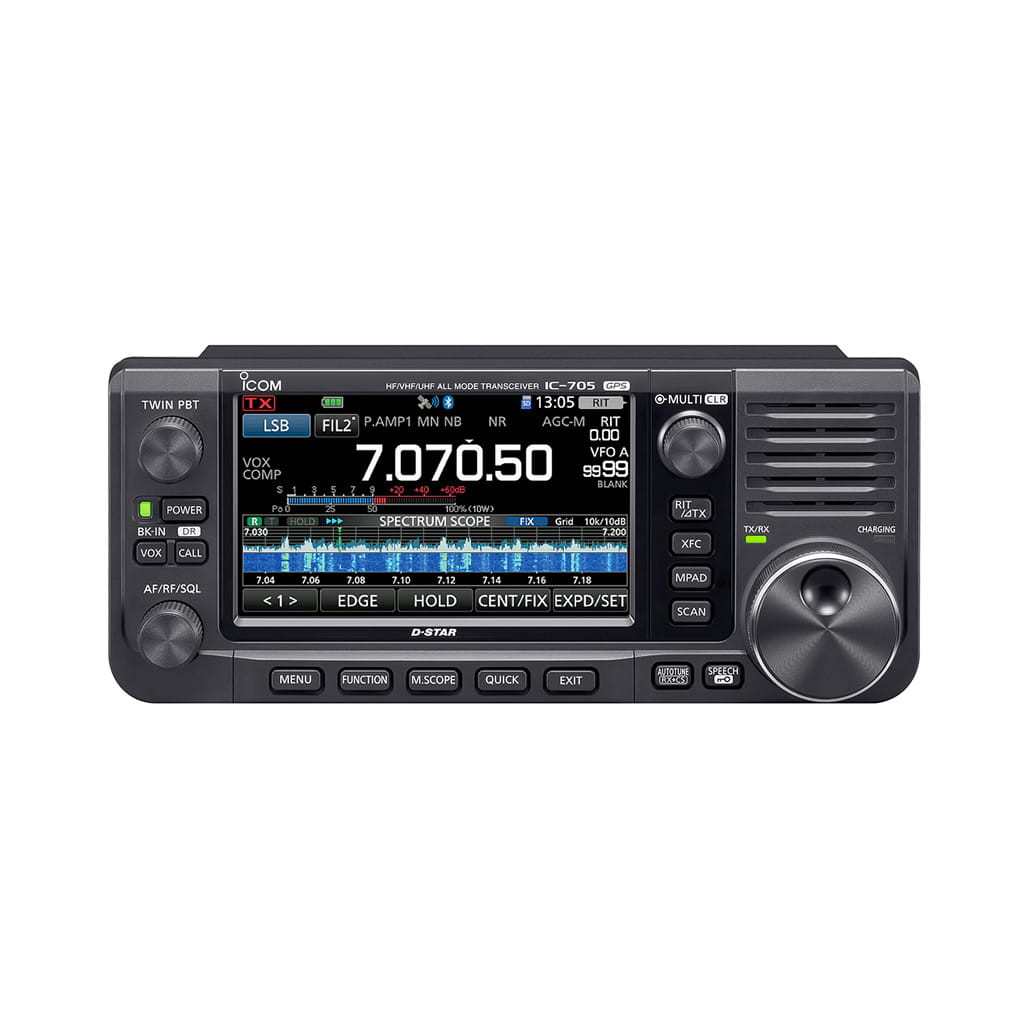

Icom IC-705 HF/VHF/UHF All-Mode Portable Transceiver (1.8–450 MHz)
The IC-705 is an amateur radio transceiver (FCC Part 97). It requires a valid Amateur Radio License for transmit operation in the USA.

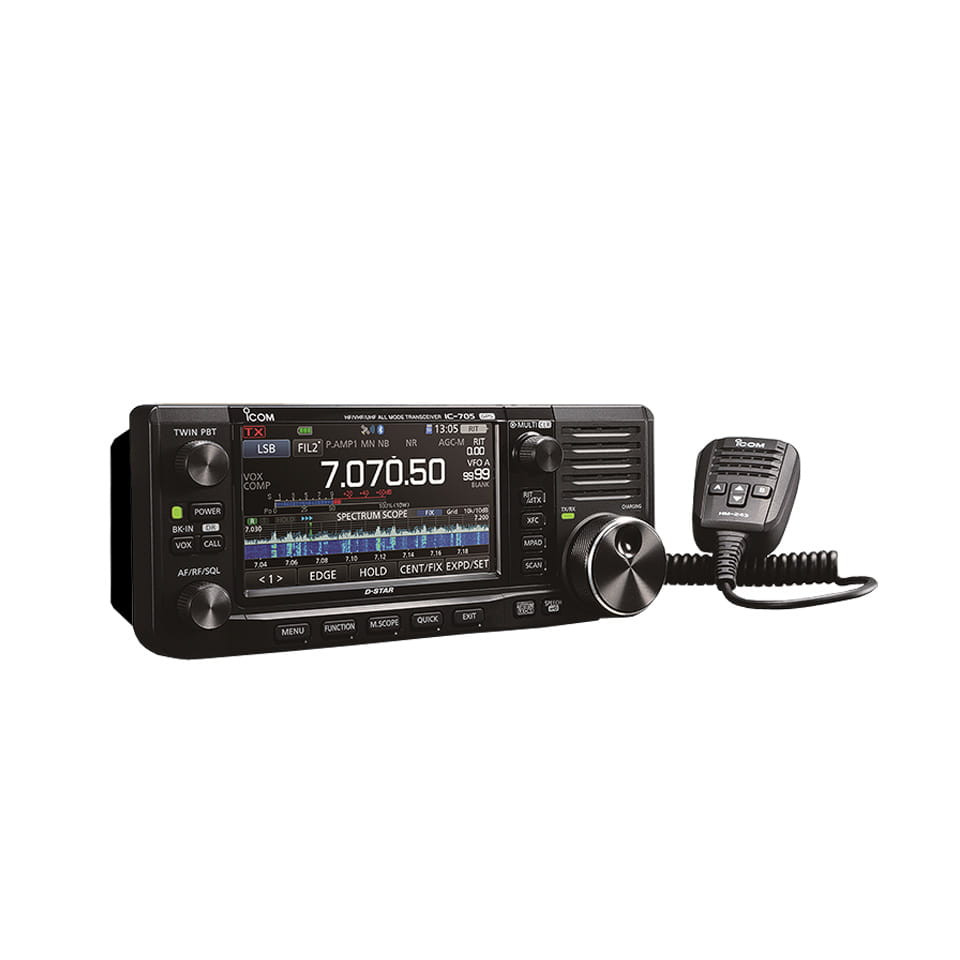

The IC-705 is a portable all-band all-mode amateur radio transceiver covering HF through 440 MHz — 160m to 6m, 2m, and 70cm - in SSB, CW, RTTY, AM, FM, and D-STAR DV. Output is 10W on external 13.8V DC or 5W from the included BP-272 Li-ion battery. SDR-based receiver, 4.3" color touchscreen, built-in GPS, Wi-Fi, and Bluetooth.
Authorized Dealer
Fast Nationwide Shipping
Technical Support & Programming
Bulk Pricing Available
Why Professionals Choose the Icom IC-705
The IC-705 is designed for amateur radio field operations — SOTA, POTA, portable DX, and emergency communications. FCC Part 97 license required for all transmit operation.
TX covers all US amateur bands from 160m (1.8 MHz) through 70cm (450 MHz): HF, 6m, 2m, and 70cm in a single compact unit. Output: 0.5–10W on 13.8V DC external power; 0.5–5W on the BP-272 Li-ion battery. AM carrier power: 0.25–2.5W (external) / 0.25–1.5W (battery). Frequency stability: ±0.5 ppm across −10°C to +60°C operating range. Single BNC connector (50Ω) serves all bands.
Receiver uses RF Direct Sampling (SDR) from 0.030–24.999 MHz and Down-Conversion IF Sampling above 25 MHz. General coverage RX: 0.030–199.999 MHz and 400–470 MHz, including FM broadcast and airband (receive only). Sensitivity: SSB/CW 0.20 µV (HF) / 0.15 µV (50 MHz) / 0.11 µV (144/440 MHz) at 10 dB S/N with preamp. Selectivity (SHARP filter): SSB 2.4 kHz/−6 dB; CW 500 Hz/−6 dB; FM 12 kHz/−6 dB. Audio output: 530 mW internal speaker (12Ω), 200 mW external (8Ω).
500 memory channels (100 groups), 25 scan edges, 4 call channels. Modes: USB, LSB, CW, RTTY, AM, FM, DV (D-STAR), WFM (RX only). One-touch FT8 preset memory for digital mode operation. MicroSD card slot for QSO recording, GPS logging, firmware updates, and programming.
Built-in GPS for D-PRS location reporting, repeater search, and GPS logging. Built-in Wi-Fi (802.11 b/g/n) for remote operation via RS-BA1 software. Built-in Bluetooth for wireless headset (VS-3) and smartphone linking. Current drain: TX <3A at 10W (13.8V) / <2.5A at 5W (7.4V); RX standby 260 mA (13.8V) / 400 mA (7.4V).
Specification
General
| Frequency TX (Amateur Bands) | 1.8–1.999 / 3.5–3.999 / 5.255–5.405 / 7.0–7.3 / 10.1–10.15 / 14.0–14.35 / 18.068–18.168 / 21.0–21.45 / 24.89–24.99 / 28.0–29.7 / 50–54 / 144–148 / 430–450 MHz | |
| Frequency RX (General Coverage) | 0.030–199.999 MHz / 400–470 MHz | |
| Modes | USB, LSB, CW, RTTY, AM, FM, DV (D-STAR), WFM (RX only) | |
| Memory Channels | 500 (100 groups) + 25 scan edges + 4 call channels | |

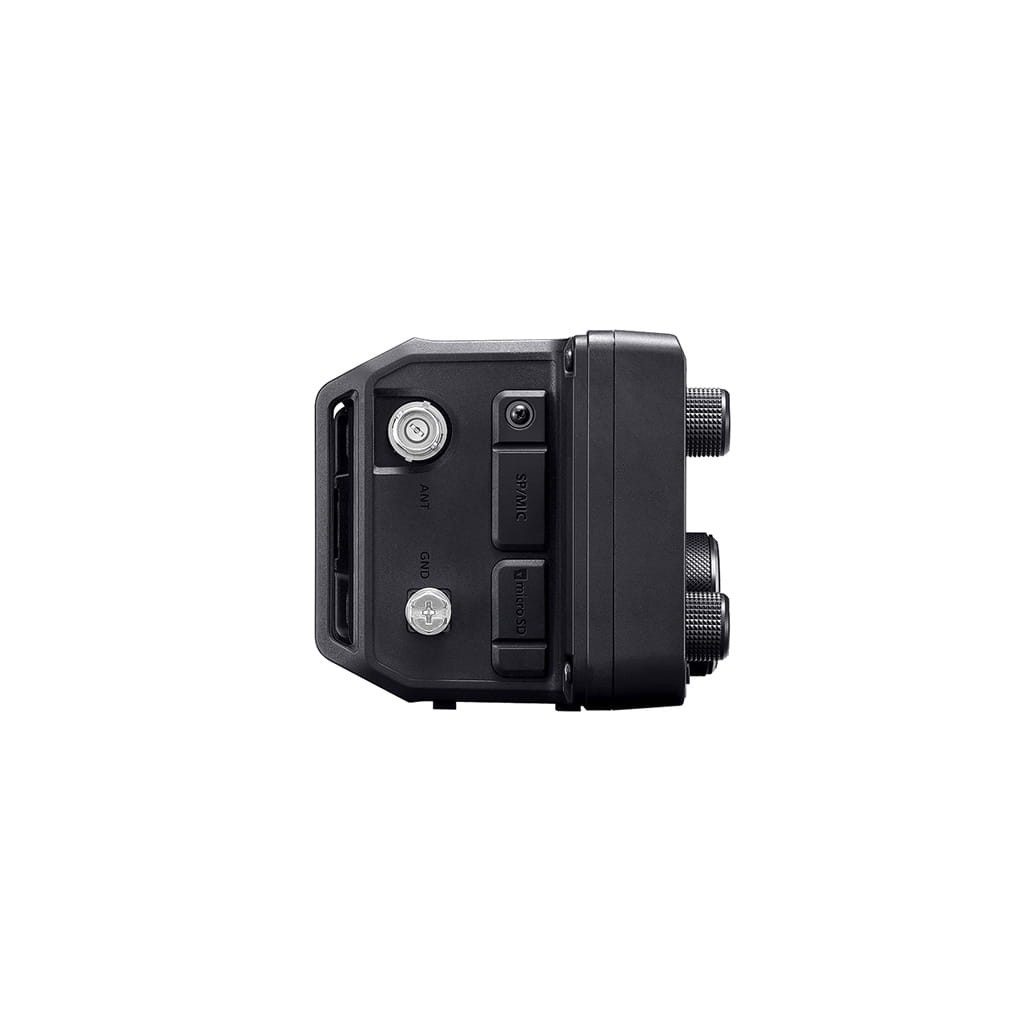

| Antenna Connector | BNC (50Ω) — one connector for all bands | |
| Power Supply | 13.8V DC ±15% (external) / 7.4V DC (BP-272) | |
| Current Drain TX (10W / 13.8V) | Less than 3A | |
| Current Drain TX (5W / 7.4V) | Less than 2.5A | |
| Current Drain RX max. audio | 320 mA (13.8V) / 700 mA (7.4V) typical | |
| Current Drain RX standby | 260 mA (13.8V) / 400 mA (7.4V) typical | |
| Battery Life (BP-272, TX:RX:Stby=1:1:8) | Approx. 3 hours (FM mode, Power Save ON) | |
| Frequency Stability | ±0.5 ppm (−10°C to +60°C) | |
| Frequency Resolution | 1 Hz | |
| Operating Temperature | −10°C to +60°C (+14°F to +140°F) | |
| Display | 4.3" color TFT touchscreen with real-time spectrum scope and waterfall | |
| Dimensions (W×H×D) | 200 × 83.5 × 82 mm (7.9 × 3.3 × 3.2 in) | |
| Weight (with BP-272) | 1.1 kg (2.4 lb) | |
Transmitter
| Output Power — SSB/CW/RTTY/FM/DV (13.8V DC) | 0.5–10W |
| Output Power — SSB/CW/RTTY/FM/DV (7.4V DC, BP-272) | 0.5–5W |
| Output Power — AM (13.8V DC) | 0.25–2.5W (carrier) |
| Output Power — AM (7.4V DC, BP-272) | 0.25–1.5W (carrier) |
| Modulation — SSB | Digital PSN modulation |
| Modulation — AM | Digital low power modulation |
| Modulation — FM | Digital phase modulation |
| Modulation — DV | GMSK digital phase modulation |
Receiver
| Receiver System (HF) | RF Direct Sampling (0.030–24.999 MHz) |
| Receiver System (VHF/UHF) | Down-Conversion IF Sampling (25 MHz and above) |
| Intermediate Frequency (>25 MHz) | 38.85 MHz ±0.5 MHz |
| Sensitivity SSB/CW (10 dB S/N, preamp ON) | 0.20 µV (HF) / 0.15 µV (50 MHz) / 0.11 µV (144/440 MHz) |
| Sensitivity FM (12 dB SINAD, preamp ON) | 0.5 µV (28 MHz) / 0.25 µV (50 MHz) / 0.18 µV (144/440 MHz) |
| Selectivity SSB (2.4 kHz, SHARP) | More than 2.4 kHz /−6 dB / Less than 3.4 kHz /−40 dB |
| Selectivity CW (500 Hz, SHARP) | More than 500 Hz /−6 dB / Less than 700 Hz /−40 dB |
| Selectivity FM (15 kHz, SHARP) | More than 12.0 kHz /−6 dB / Less than 20 kHz /−40 dB |
| Spurious & Image Rejection | More than 70 dB (HF/50 MHz) / More than 54 dB (144/440 MHz) |
| Audio Output — Internal Speaker | More than 530 mW (12Ω, 10% distortion) |
| Audio Output — External Speaker | More than 200 mW (8Ω, 10% distortion) |
Compliance
| FCC Certification | Part 97 (Amateur Radio — USA version) |
| MIL-STD | MIL-STD-810 C/D/E/F (confirmed per Icom Japan specs) |
| IP Rating | Not listed in official Icom America datasheet |
| Connectivity | Wi-Fi 802.11 b/g/n / Bluetooth / USB Micro-B (2× COM ports + charging) |
| Storage | microSD card slot |
FCC Licensing and Compliance Support
The IC-705 is an amateur radio transceiver certified under FCC Part 97. Transmitting on amateur radio frequencies in the United States requires a valid Amateur Radio License issued by the FCC.
Three license classes are available: Technician, General, and Amateur Extra — each granting progressively broader HF band access. Technician licensees have full 2m and 70cm transmit privileges but limited HF access. General and Amateur Extra licensees have full access to the HF bands covered by the IC-705.
AXDIGITAL supplies the IC-705 as an authorized Icom dealer. Licensing questions and exam preparation resources are available through the ARRL (arrl.org). Contact our team to confirm equipment availability and compliance for your specific amateur radio application.
FAQ
What is the difference between 5W and 10W operation on the IC-705?
10W output requires an external 13.8V DC power supply connected via the OPC-2421 cable (included). The BP-272 Li-ion battery (included) provides up to 5W output and approximately 3 hours of operation at a 1:1:8 TX:RX:standby ratio. The optional BP-307 (3150 mAh) extends battery runtime. Power output is adjustable down to 0.5W for QRPp operation.
Does the IC-705 have a built-in antenna tuner?
No. The IC-705 does not include a built-in antenna tuner. The optional AH-705 automatic antenna tuner (1.8–50 MHz, 10W max.) connects directly to the IC-705 via the CI-V/tuner control port and integrates with the front panel TUNER function. For VHF/UHF operation a tuner is generally not required with properly matched antennas.
What digital modes does the IC-705 support?
Built-in modes: D-STAR DV, RTTY (with built-in decoder). The IC-705 also supports FT8, PSK31, Winlink, and other PC-based digital modes via the USB audio/serial interface — no external soundcard interface required. One-touch FT8 preset memory is included for fast mode switching. Wi-Fi connectivity enables fully wireless PC digital mode operation.
