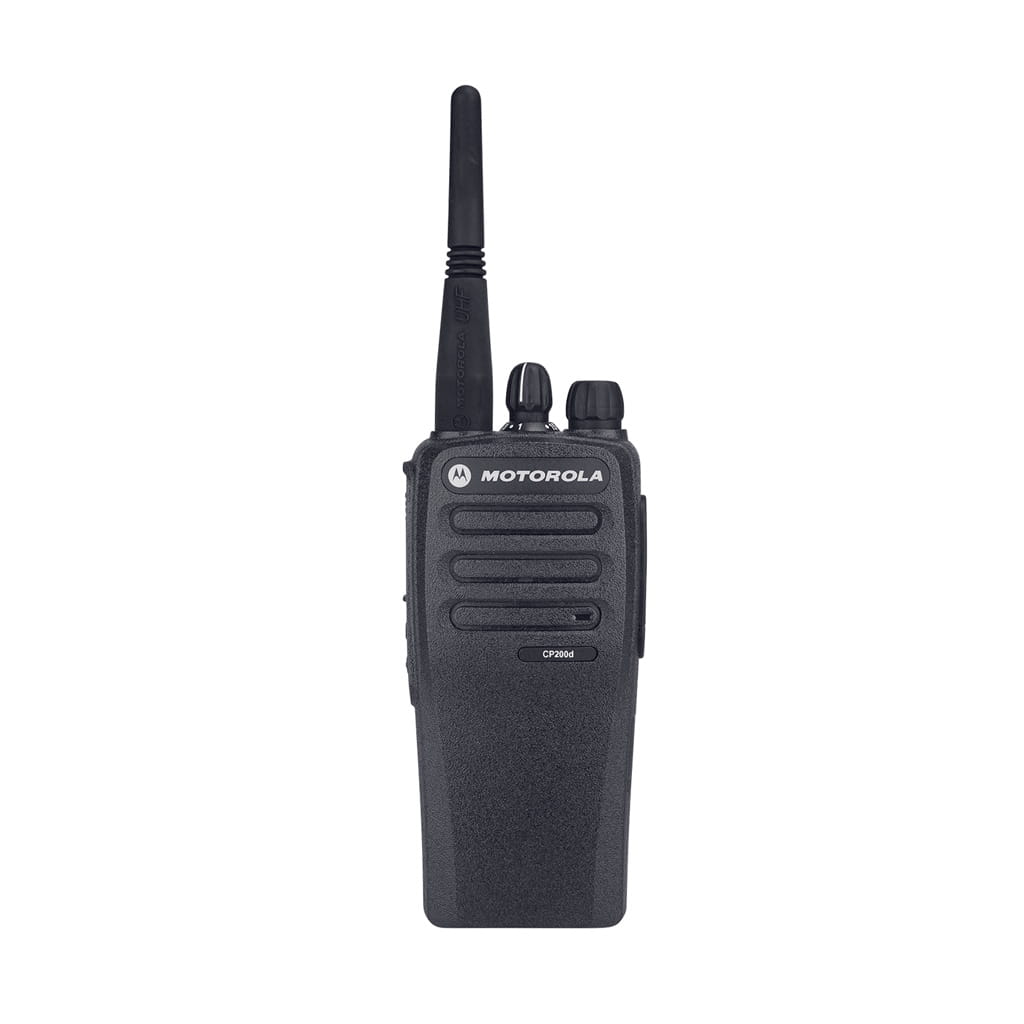

Motorola CP200d MOTOTRBO Portable Two-Way Radio (VHF 136–174 MHz)
The CP200d VHF is a MOTOTRBO portable radio for outdoor crews — construction sites, large campuses, agriculture operations, and transportation yards where VHF at 136–174 MHz reaches farther over open terrain than UHF. At 5W with 16 programmable channels, it runs full shifts on a single charge and works alongside existing analog radios from day one. The same durable housing as the CP200, with a direct upgrade path to digital.
Authorized Dealer
Fast Nationwide Shipping
Technical Support & Programming
Bulk Pricing Available
Why Professionals Choose the Motorola CP200d
The CP200d VHF is a no-display MOTOTRBO radio for outdoor teams that spend their shifts moving across open property rather than through a building. Construction site supervisors, grounds and maintenance crews on university campuses, farm and agriculture operations, and transportation yard dispatchers all work in environments where the radio needs to reach far across open ground — and where there is no time to train workers on complex interfaces. The CP200d operates the same way a radio should: power knob, channel knob, PTT. Crews familiar with the original CP200 can pick up a CP200d VHF and be operational without any transition.
- Dual Capacity Direct Mode Yes (digital mode only)
- Extended Range Direct Mode Yes (digital mode only)
- Transmit Interrupt (Decode Only) Yes (digital mode only)
- Basic Privacy Yes (digital mode only)
- Emergency Alert Yes
- Lone Worker Yes
- Radio Inhibit (Decode Only) Yes (digital mode only)
- Remote Monitoring (Decode Only) Yes (digital mode only)
- Rx Audio Leveling / AGC Yes
- Voice Announcement Customizable
- Quik Call II / MDC1200 Yes
At 5W across the 136–174 MHz band, the CP200d VHF outputs one watt more than the UHF variant — directly translating to extended coverage range over open terrain. VHF signals at this frequency propagate farther over flat or gently rolling ground, follow terrain contours, and clear low vegetation with less path loss than UHF. For crews working across construction yards, open fields, large parking structures, or multi-building outdoor campuses, VHF is the practical standard and 5W positions the CP200d VHF at the top of its power class for portable business radios.
TConfirmed in the official Motorola CP200d datasheet, Extended Range Direct Mode allows the radio to significantly increase coverage area on a single frequency beyond what standard direct mode provides — at high capacity and low cost without adding a repeater. For outdoor operations with crews spread across a large site where installing repeater infrastructure is not practical, Extended Range Direct Mode extends the effective working radius of the CP200d VHF fleet across the full operational area. This is particularly relevant for temporary job sites, agricultural operations across open acreage, and outdoor facilities where permanent repeater installation is not in scope.
The high-capacity 2250mAh Li-ion battery runs 19.5 hours in digital mode and 15.5 hours in analog mode under a 5-5-90 duty cycle — covering the full shift for outdoor workers starting early and finishing late. For operations where workers share radios across two shifts without a guaranteed charging window, the Ultra-High Capacity 2900mAh battery extends runtime to 25 hours digital / 19.5 hours analog. The analog-only model (AAH01JDC9JC2AN) gives organizations that are not ready for digital a lower entry cost, with a clear upgrade path: the HKVN4223 software key unlocks digital operation later without replacing the radio hardware.
Specification
General
| Frequency Range | VHF 136–174 MHz |
| Channel Capacity | 16 Channels |
| Channel Spacing | 12.5 kHz / 25 kHz |
| Power Supply | 7.5V (nominal) |

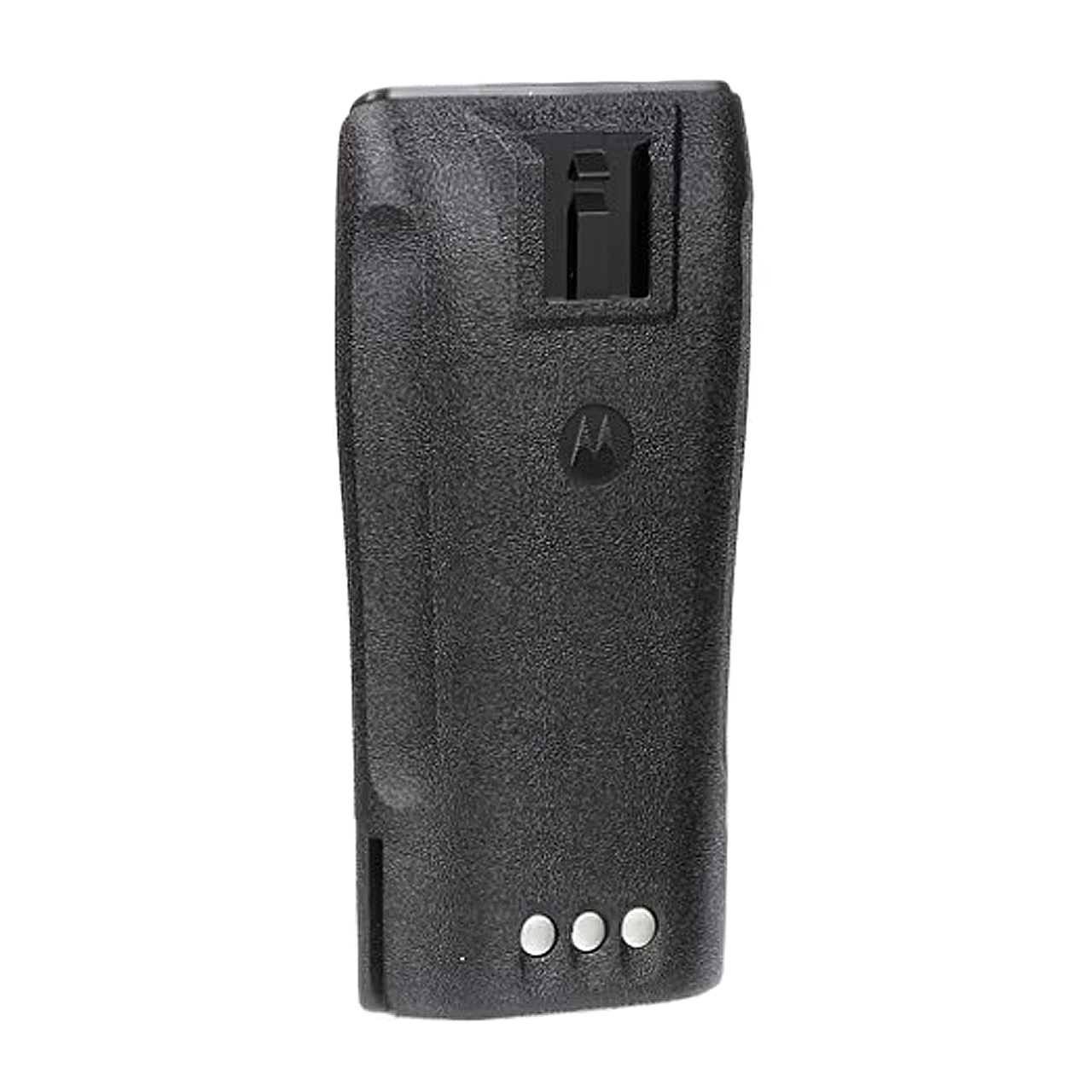

| Battery (Standard) | High Cap Li-ion 2250mAh (NNTN4497) |
| Battery (slim option) | Slim Li-Ion 1600mAh |
| Battery (ultra-high) | Ultra-High Cap Li-Ion 2900mAh |
| Battery Life — digital (5-5-90) | 14.5h (1600mAh) / 19.5h (2250mAh) / 25h (2900mAh) |
| Battery Life — analog (5-5-90) | 11.5h (1600mAh) / 15.5h (2250mAh) / 19.5h (2900mAh) |
| Operating Temperature | −30°C to +60°C (−22°F to +140°F) |
| Dimensions (H×W×D) with slim battery | 127.7 × 61.5 × 39.0 mm (5.0" × 2.4" × 1.5") |
| Dimensions (H×W×D) with high-cap battery | 127.7 × 61.5 × 44.0 mm (5.0" × 2.4" × 1.8") |
| Weight with slim battery | 341g (12.1 oz) |
| Weight with high-cap battery | 346g (12.2 oz) |
| Display | None |
| FCC ID | ABZ99FT3092 |
| IP Rating | IP54 |
| MIL-STD | 810C / 810D / 810E / 810F / 810G |
Transmitter
| RF Power Output | 5W (High), 1W (Low) |
| Modulation Limiting | ±2.5 kHz @ 12.5 kHz / ±5.0 kHz @ 25 kHz |
| Modulation (Analog) | 11K0F3E @ 12.5 kHz, 16K0F3E @ 25 kHz |
Receiver
| Analog Sensitivity (12 dB SINAD) | 0.3 µV / 0.22 µV (typical) |
| Digital Sensitivity (5% BER) | 0.25 µV / 0.19 µV (typical) |
| Adjacent Channel Selectivity (TIA-603) | 65 dB @ 12.5 kHz, 70 dB @ 25 kHz |
Compliance
| FCC Part 90 | Certified (FCC ID: ABZ99FT3092) |
| IP54 | Confirmed — official Motorola CP200d datasheet |
| MIL-STD-810 C/D/E/F/G | Compliant — all procedures confirmed in official datasheet |
| Accelerated Life Test | Passed — simulated 5 years of hard service (official datasheet) |
FCC Licensing and Compliance Support
Operating the Motorola CP200d VHF on licensed frequencies in the United States requires an FCC Part 90 license. This applies to commercial and business radio use across construction, campus facilities management, agriculture, transportation and logistics, and outdoor security teams on private licensed VHF frequencies in the 136–174 MHz band.
AXDIGITAL supplies the CP200d VHF as a genuine, factory-sealed Motorola unit, and we can share guidance on where FCC Part 90 licensing starts — including how to select the right VHF frequency for your site and any existing equipment. VHF is the recommended band for outdoor, open-area operations, and we can walk you through what frequency selection involves based on terrain, site size, and your existing radios.
The CP200d VHF is FCC Part 90 certified (FCC ID: ABZ99FT3092) and supports analog and digital MOTOTRBO modulation. For organizations coordinating across multiple outdoor zones or moving from analog to digital, we can point you toward practices for channel planning, frequency coordination, and timing a digital upgrade.
Contact us to discuss licensing requirements for your organization.
FAQ
What is the communication range of the CP200d VHF outdoors?
At 5W VHF across 136–174 MHz, the CP200d covers approximately 3–5 miles in open terrain under clear conditions — farther than the UHF variant under equivalent outdoor conditions. VHF propagates effectively across open ground, construction yards, agricultural fields, and large outdoor campuses. With Extended Range Direct Mode enabled, coverage area on a single frequency extends beyond standard direct mode range without a repeater. For site-specific estimates, contact our team before purchasing.
Can the analog-only CP200d VHF be upgraded to digital later?
Yes. The analog-only model (AAH01JDC9JC2AN) can be unlocked for full analog/digital MOTOTRBO operation with the HKVN4223 software programming key — no hardware changes required. This gives organizations a lower entry cost today with a confirmed digital upgrade path when the operation is ready. After the software upgrade, the radio operates in both analog and digital modes simultaneously and communicates with the existing analog fleet without reprogramming all other radios.
Does the CP200d VHF require computer programming to set up?
Yes. The CP200d must be programmed via Motorola's Customer Programming Software (CPS) and a programming cable (PMKN4012) to configure frequencies, channels, CTCSS/DCS privacy codes, power levels, and features such as Emergency Alert and Lone Worker. AXDIGITAL provides programming support — contact us to discuss your channel plan and configuration requirements before ordering. We can pre-program radios to your frequencies before shipping.
