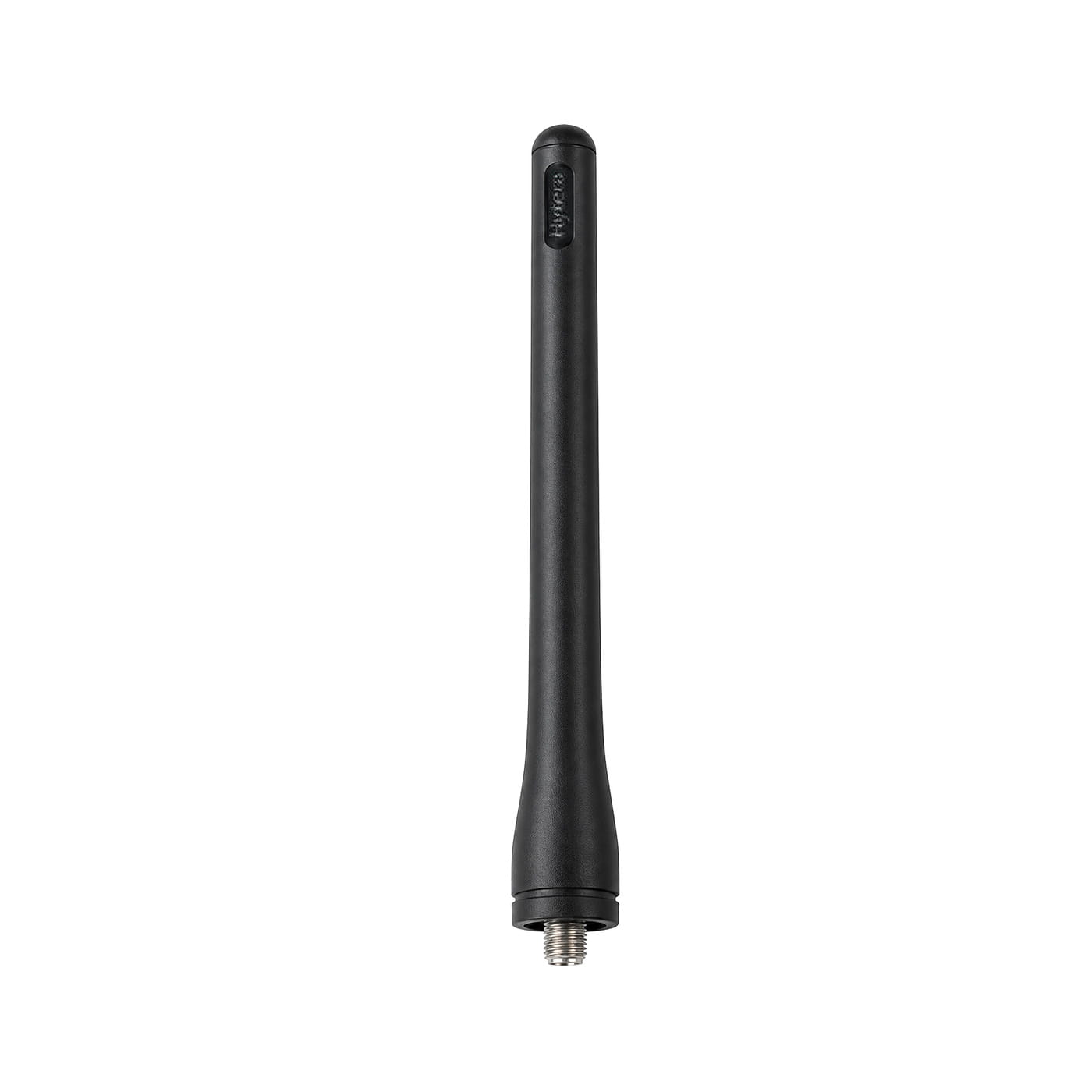

Hytera AN0167H07 VHF Stubby Antenna with GPS for BD5 / PD5 / HP Series
The AN0167H07 is an original OEM VHF stubby antenna with an integrated GPS element. It is designed for Hytera portable DMR radios in the BD5, PD5, and HP series, including the BD502i, BD552i, PD502i, and PD702i. The antenna has a compact helical design, measures 12 cm in length, and uses an SMA connector. It operates in the 160–174 MHz voice band and supports GPS at 1575 MHz. Its compact size makes it convenient to wear on a belt or tactical vest during patrols.
Authorized Dealer
Fast Nationwide Shipping
Technical Support & Programming
Bulk Pricing Available
Why Professionals Choose the Hytera Antenna AN0167H07
The antenna works on two bands. It covers 160–174 MHz for voice and 1575 MHz for GPS, both through a single SMA connector. The body is a 12 cm helical design with a brass core, so it stays short and holds up to daily knocks. At 4.7 inches it clears most vests and duty rigs that a full whip fouls on.
The GPS element is the reason to fit the original part. A plain VHF antenna, or a loose aftermarket copy, will pass voice but weaken or lose the 1575 MHz path. That shows up as a slow or missing position fix on the dispatch console. The AN0167H07 is tuned for both bands on the radios it ships for, so voice and location work together on arrival.
AXDIGITAL supplies the AN0167H07 as an authorized Hytera dealer.
Specification
Antenna — VHF Stubby Antenna with GPS AN0167H07
| Frequency Range | 160–174 MHz / 1575 MHz |
| Band | VHF |
| SGPS/GLONASS | Yes |
| Antenna Type | Stubby (helical) |
| Connector | SMA |
| Length | 12 cm (4.7 in) |
| Logo | Hytera |
| Certification | RoHS |
FAQ
What is the difference between the AN0167H07 and a non-GPS VHF antenna?
Both carry VHF voice on 160–174 MHz. The AN0167H07 adds a 1575 MHz element that receives GPS, so a radio with location tracking can report its position. A non-GPS antenna passes voice only and will weaken or block the GPS fix. If your radios use GPS dispatch or tracking, fit the AN0167H07. If they do not, a standard VHF antenna is enough.
Can the AN0167H07 be installed on radios without GPS?
Yes. It is a standard VHF antenna with an added GPS receive element. On a radio that has no GPS, voice on 160–174 MHz works normally and the GPS element simply stays idle. There is no downside to reception. If none of your radios use GPS, a plain VHF antenna in the same band is enough.
