Hytera CHV09 Vehicle Power Adapter for Charger Cradles

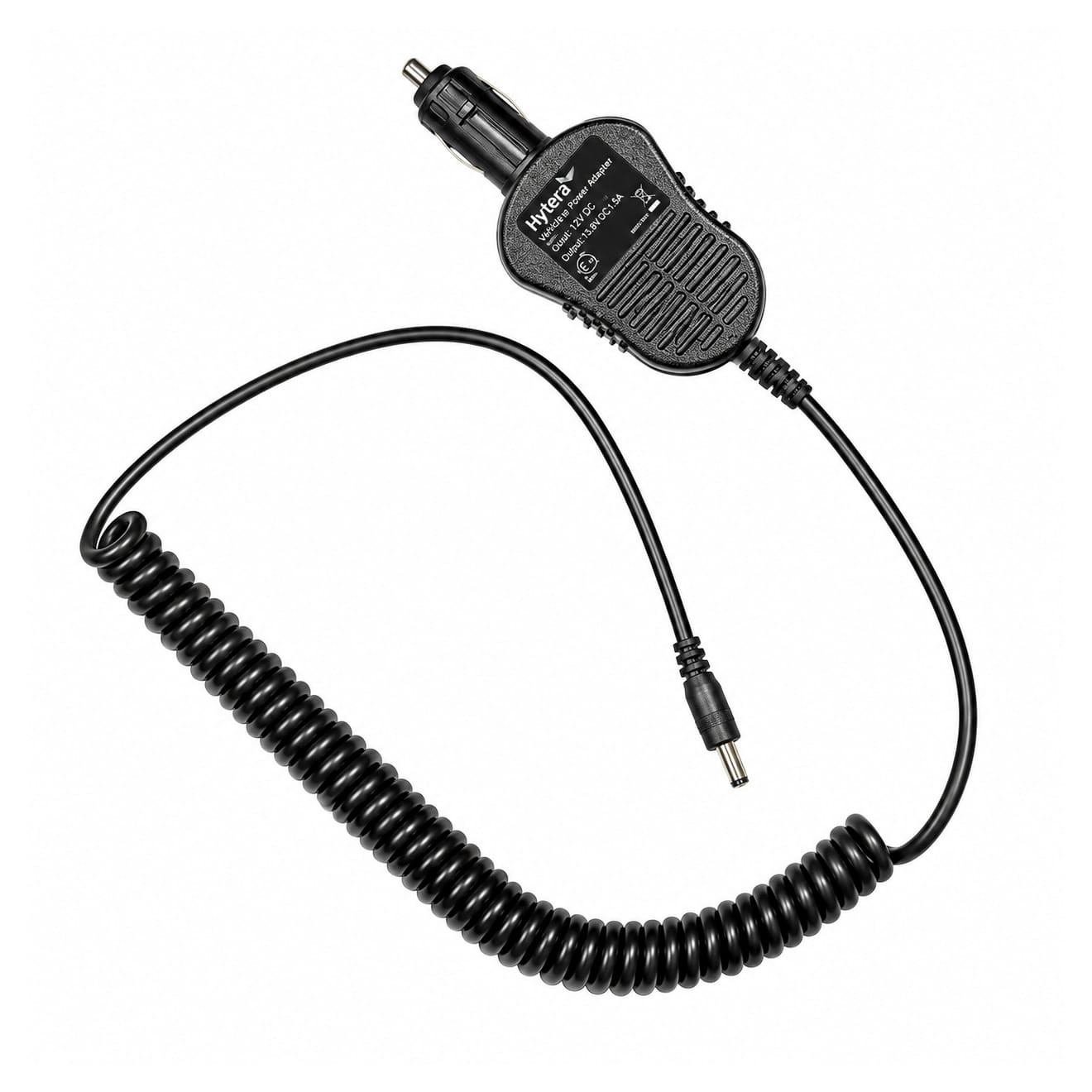

The Hytera CHV09 is the OEM in-vehicle power adapter for Hytera single-unit charger cradles. It runs from a vehicle outlet on 11-25 VDC and outputs 12 VDC at 1 A through a fused cigarette-lighter plug. It powers the charger cradle, not the radio directly, so a radio charges in the vehicle. The AC-outlet equivalent is the PS1014.
Authorized Dealer
Fast Nationwide Shipping
Technical Support & Programming
Bulk Pricing Available
Why Professionals Choose the Hytera Vehicle Power Adapter CHV09
Mobile and fleet users often have no AC outlet where they work, but every vehicle has a power outlet. The CHV09 lets a Hytera desktop charger run from that outlet, so a radio charges in the truck between jobs instead of waiting for a wall socket back at base.
The CHV09 accepts 11 to 25 VDC, which covers both 12 V cars and 24 V trucks, and outputs a regulated 12 VDC at 1 A. Power Adapter uses a cigarette-lighter plug with a built-in fuse and a DC tuning-fork output to the charger, with over-voltage and over-current protection. It powers a Hytera single-unit charger cradle, such as the CH10A07 or CH10L23, and through that cradle it charges the radio or a spare battery. The CHV09 is not a charging tray on its own. It replaces the wall adapter, so the cradle still does the charging.
For desk charging from an AC outlet, the PS1014 is the matching wall adapter for the same cradles.
AXDIGITAL is an authorized Hytera dealer and supplies the CHV09 as an OEM part.
Specification
Vehicle Power Adapter — Hytera CHV09
| Accessory Type | Vehicle Power Adapter (DC-DC) |
| Function | Powers a Hytera single-unit charger cradle from a vehicle outlet |
| Input | 11–25 VDC (covers 12 V and 24 V vehicles) |
| Output | 12 VDC, 1 A |
| Output Interface | DC tuning-fork connector |
| Plug | Cigarette lighter, with built-in fuse |
| Plug Replaceable | No |
| Protection | Over-voltage, over-current |
| Operating Temperature | 0 to 45 °C (32°F to 113°F) |
| Storage Temperature | -40 to 70 °C |
| Compliance | RoHS |
FAQ
Does the CHV09 plug into my radio or into the charger?
Connects to the charger. The CHV09 powers a Hytera single-unit charger cradle from a vehicle outlet; it does not plug into the radio. You still need the cradle, which holds the radio or battery and does the charging. Tell us your charger model and we will confirm the CHV09 fits it.
Can I use the CHV09 adapter in any vehicle?
In most vehicles, yes. The CHV09 accepts 11–25 VDC, which covers standard 12 V cars and 24 V trucks, through the cigarette-lighter socket with a built-in fuse. It will not suit vehicles outside that voltage range or without a compatible 12/24 V outlet. For a permanent setup, we can help wire it to a fused vehicle circuit.
