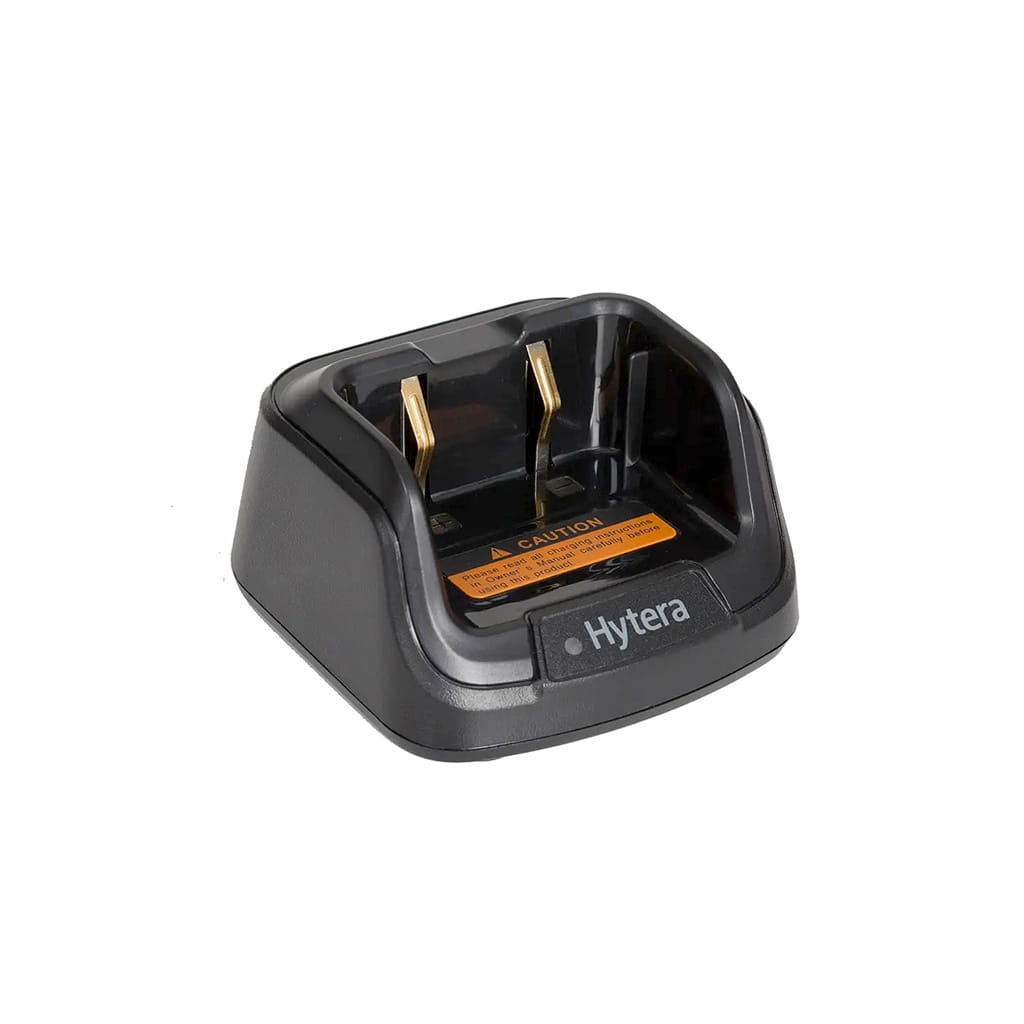

Hytera CH10L23 Rapid-Rate Desktop Charger for BD502i / BD552i / BD612i
The CH10L23 is the OEM MCU rapid-rate desktop charger for Hytera BD502i, BD552i, and BD612i portable radios. It charges Li-Ion and NiMH batteries at up to 800mA via 12V DC input using the PS1014 power adapter (sold separately). At ~70g, the single-pocket tray fits any dispatch desk or equipment shelf without displacing other gear.
Authorized Dealer
Fast Nationwide Shipping
Technical Support & Programming
Bulk Pricing Available
Why Professionals Choose the Hytera Charger CH10L23
For fleet managers running BD502i or BD612i radios across shift-based operations, a reliable single-pocket charger on each workstation is the baseline requirement. The CH10L23 is the OEM charger issued with the BD612i radio kit — meaning it was already validated to the BD5i battery system by Hytera at the product level. Procurement teams replacing damaged or lost charger bases get the same unit without having to reverify compatibility against fleet batteries.
The MCU (Micro-Controller Unit) charging circuit selects the appropriate algorithm automatically for Li-Ion and NiMH battery chemistry, avoiding the overcharge and heat accumulation that damages cells when non-MCU chargers are used. Maximum charging current is 800mA on a 12V DC input — appropriate for BL1506 (1500mAh) and BL2018 (2000mAh) batteries without thermal stress. Operating temperature range is 0°C to 45°C, covering typical indoor environments from climate-controlled offices to manufacturing floor break rooms.
The CH10L23 is supplied as charger base only. It requires the PS1014 power adapter (US plug, 100–240VAC input) to operate — contact our team to add the PS1014 to your order. For BD5i fleets requiring simultaneous charging of 6 units, the MCL19 6-bay charger is the multi-unit alternative; we can quote both options together.
AXDIGITAL is an authorized Hytera dealer supplying OEM parts to US enterprises.
Specification
Charger — Rapid-Rate Desktop Charger CH10L23
| Charger Type | Single-unit desktop charger |
| Battery Chemistry | Li-Ion, NiMH |
| Max. Charging Current | 800 mA |
| Input | 12 V DC / 1 A |
| Number of Slots | 1 |
| Operating Temperature | 0°C to +45°C (+32°F to +113°F) |
| Weight | ~70 g (base only, without power adapter) |
| Power Supply | PS1014 (US plug, 100–240VAC) — required, sold separately |
| Indicator Type | LED (Red = Charging / Green = Full) |
| Compatible Batteries | BL1506, BL2018 |
| Compatible Radio Models | BD502i, BD552i, BD612i |
FAQ
Does the CH10L23 come with a power supply?
No. The CH10L23 is sold as the charger base only. Operation requires the PS1014 power adapter (US plug, 100–240VAC input, 12VDC/1A output), which is sold separately. If you are replacing a lost or damaged charger base and already have a working PS1014, the CH10L23 alone is the correct purchase. If you need both, contact our team — we can supply them as a combined order.
Is the CH10L23 compatible with the Hytera BD612i?
Yes. The CH10L23 is confirmed compatible with the BD502i, BD552i, and BD612i, and supports both BL1506 (1500mAh) and BL2018 (2000mAh) batteries. It charges batteries with the radio installed in the cradle or with the battery removed and inserted directly. For mixed BD5i and BD6i fleet deployments, contact our team to confirm the full compatibility scope before ordering in quantity.
