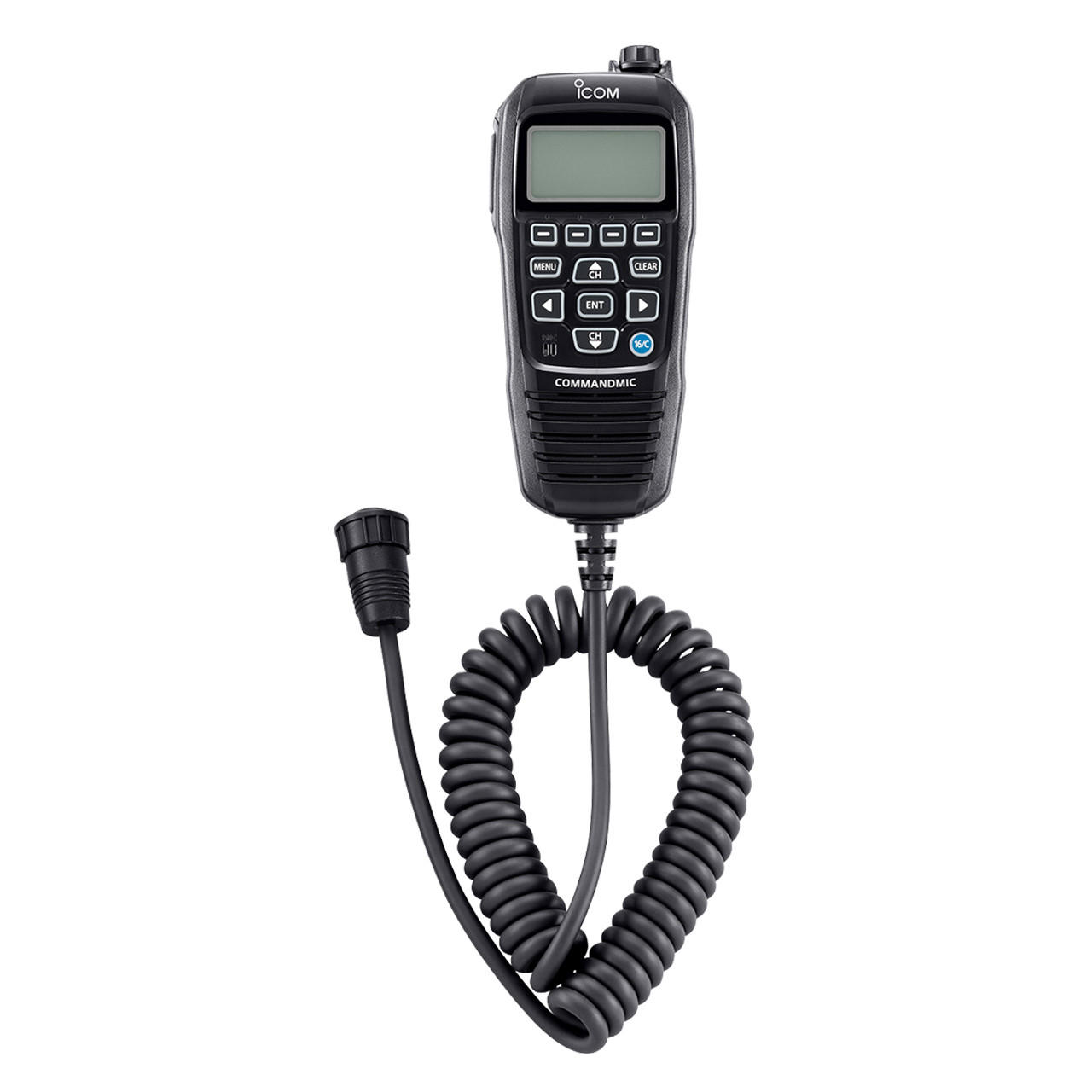

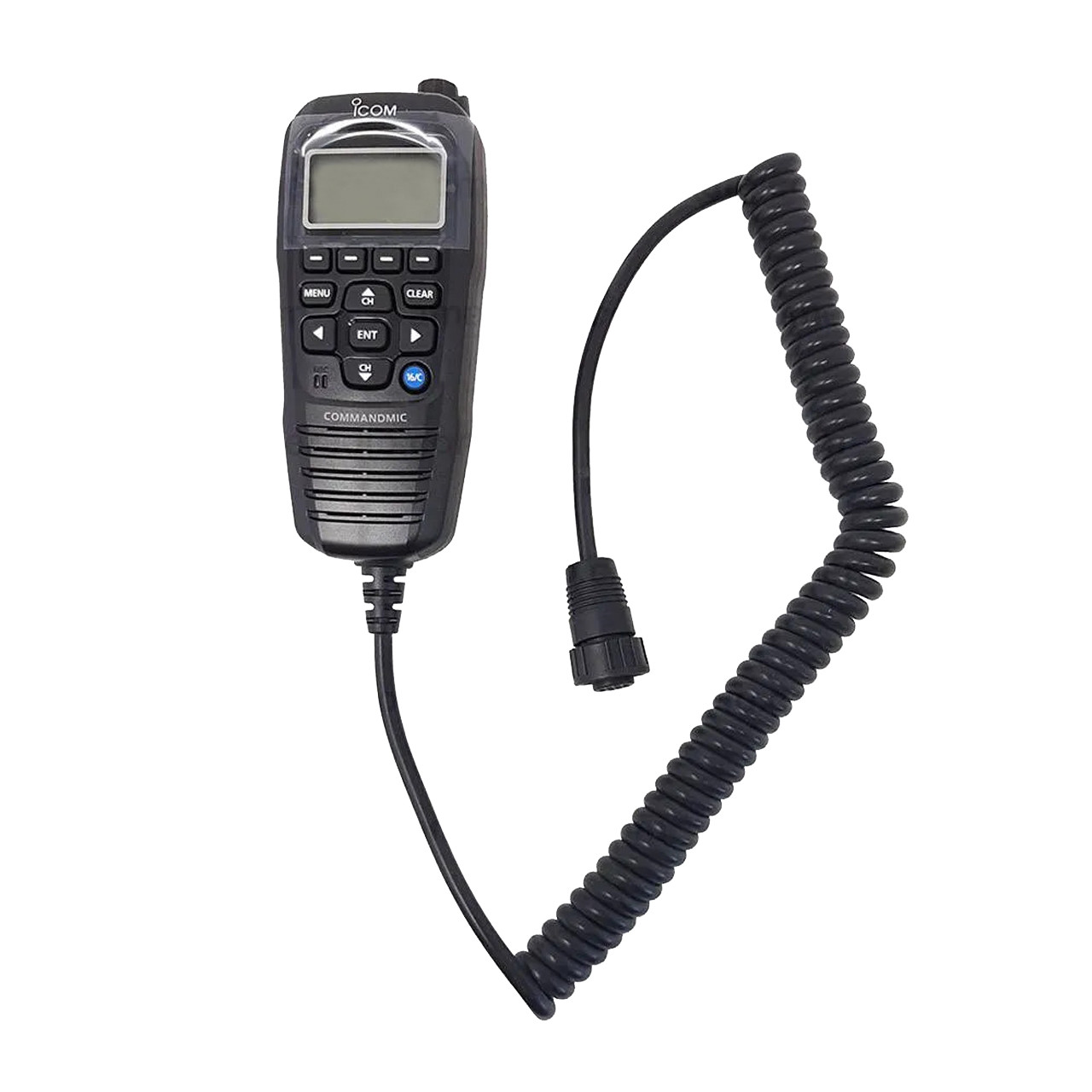

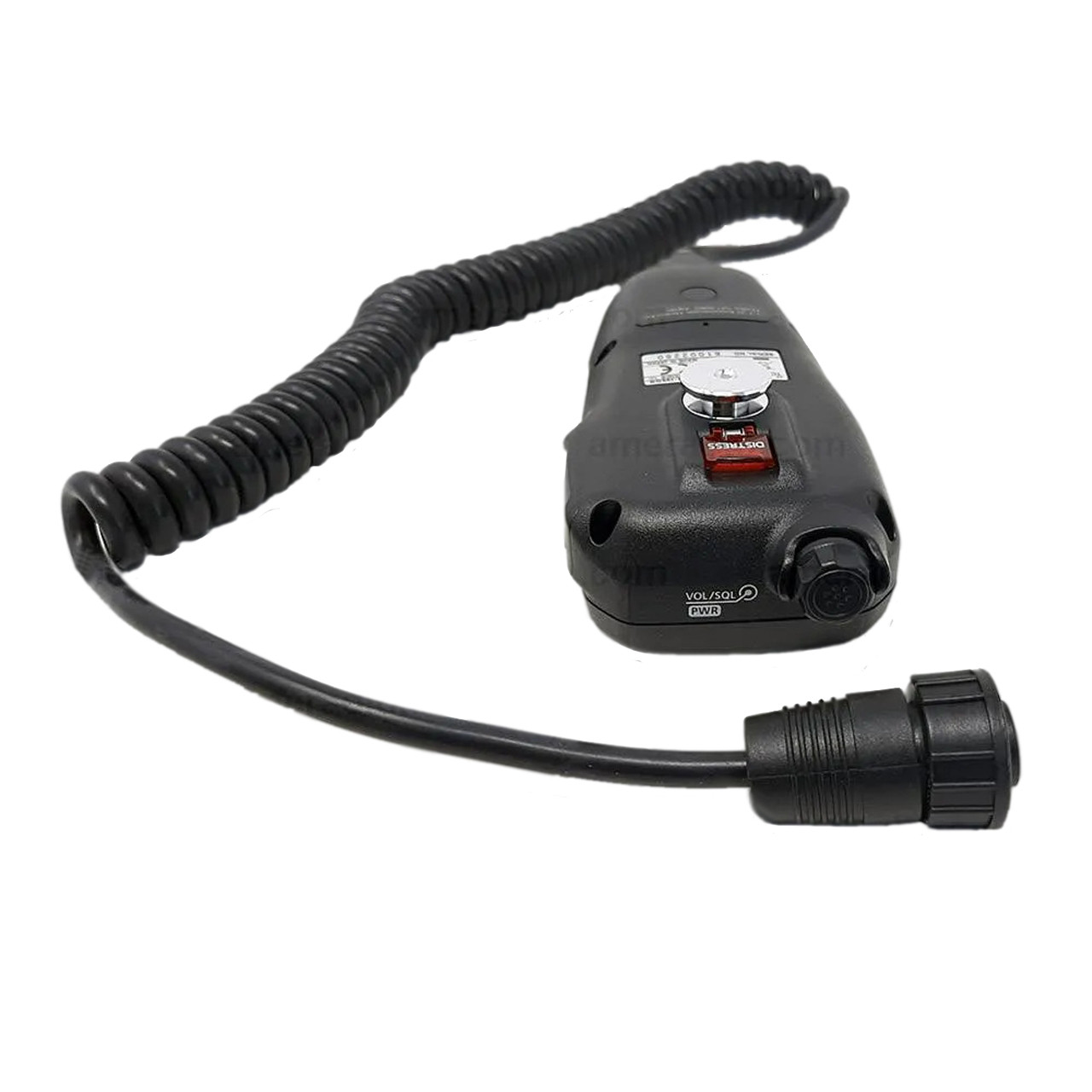

Icom HM-195GB CommandMic IV Command Microphone
The HM-195GB is the OEM COMMANDMIC™ IV command microphone for Icom fixed-mount marine VHF transceivers including the IC-M424G, IC-M510, IC-M510BB, IC-M510EVO, IC-M410BB, and IC-M605. It delivers full remote control of all radio functions - including DSC distress — from a second station up to 18.3 m away, with 2.0 W audio output, IP67 waterproof rating, and a 560 mm coiled cable. The kit includes 6.1 m of connection cable, microphone hanger, and mounting base.
Authorized Dealer
Fast Nationwide Shipping
Technical Support & Programming
Bulk Pricing Available
Why Professionals Choose the Icom CommandMic HM-195GB

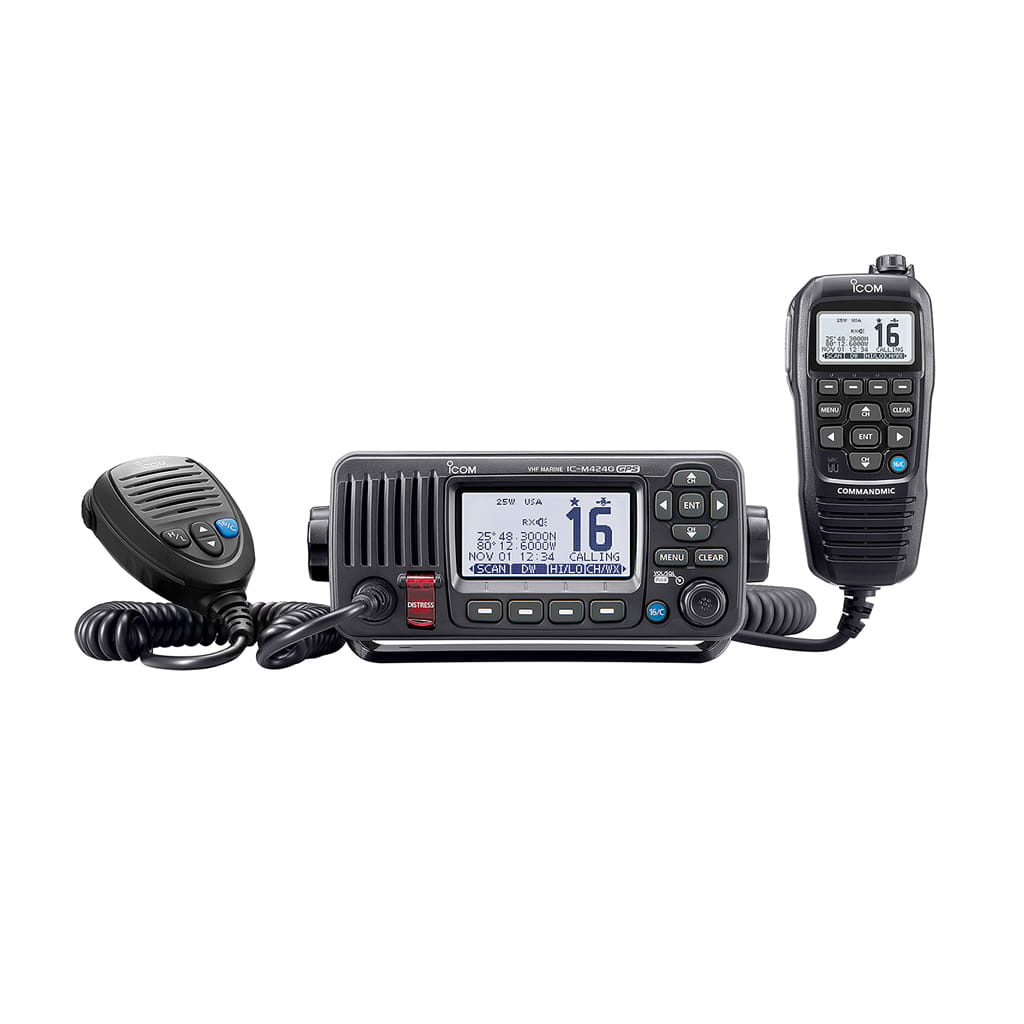

A vessel with separate helm and cockpit stations, or a flybridge and lower helm, requires the VHF to be operable from both positions. Mounting the IC-M424G or IC-M510 at the lower helm and running an HM-195GB to the flybridge or a second cabin gives the watch officer full radio control without leaving the station. The HM-195GB supports intercom between the two positions — a practical communication channel between crew stations without using the main VHF channel.

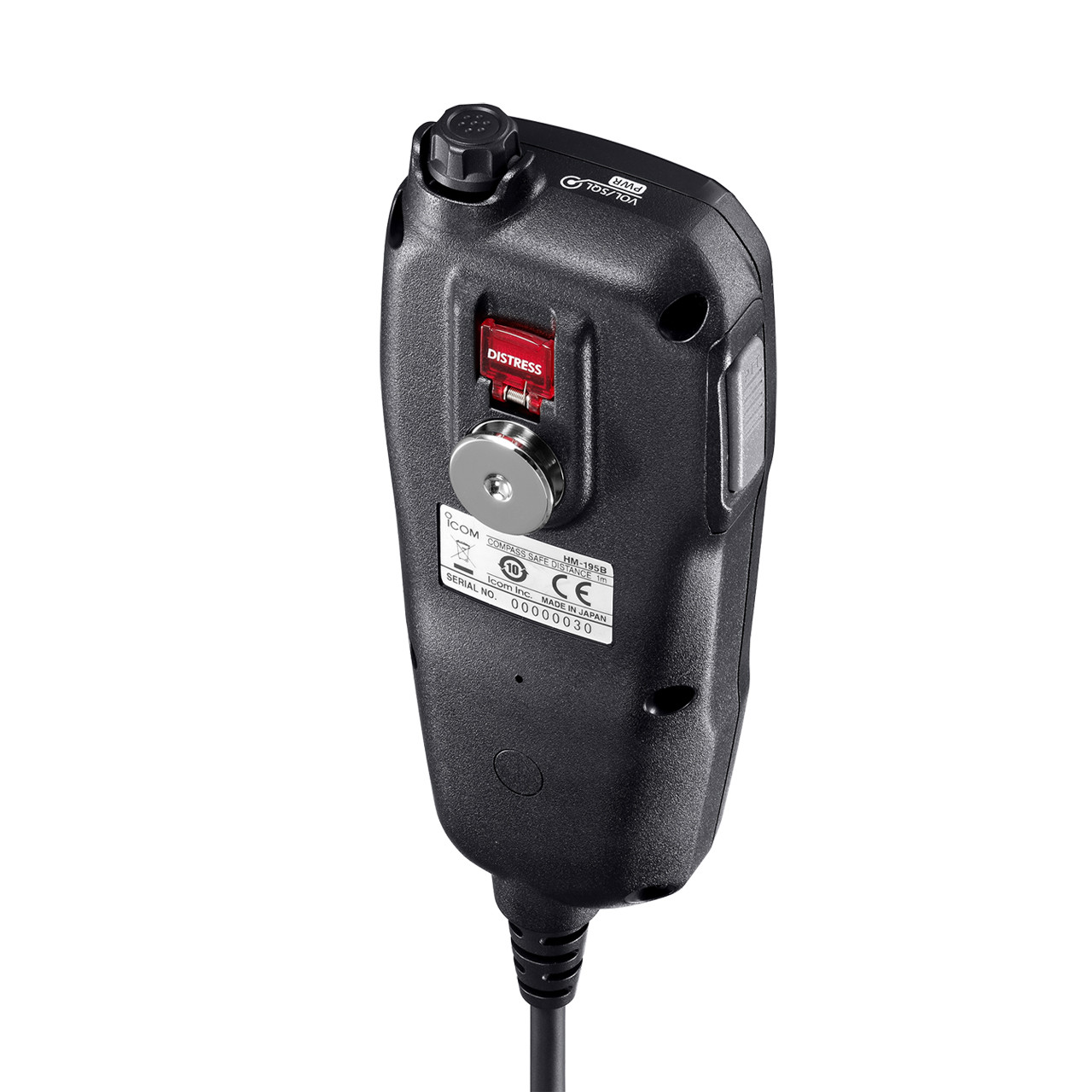

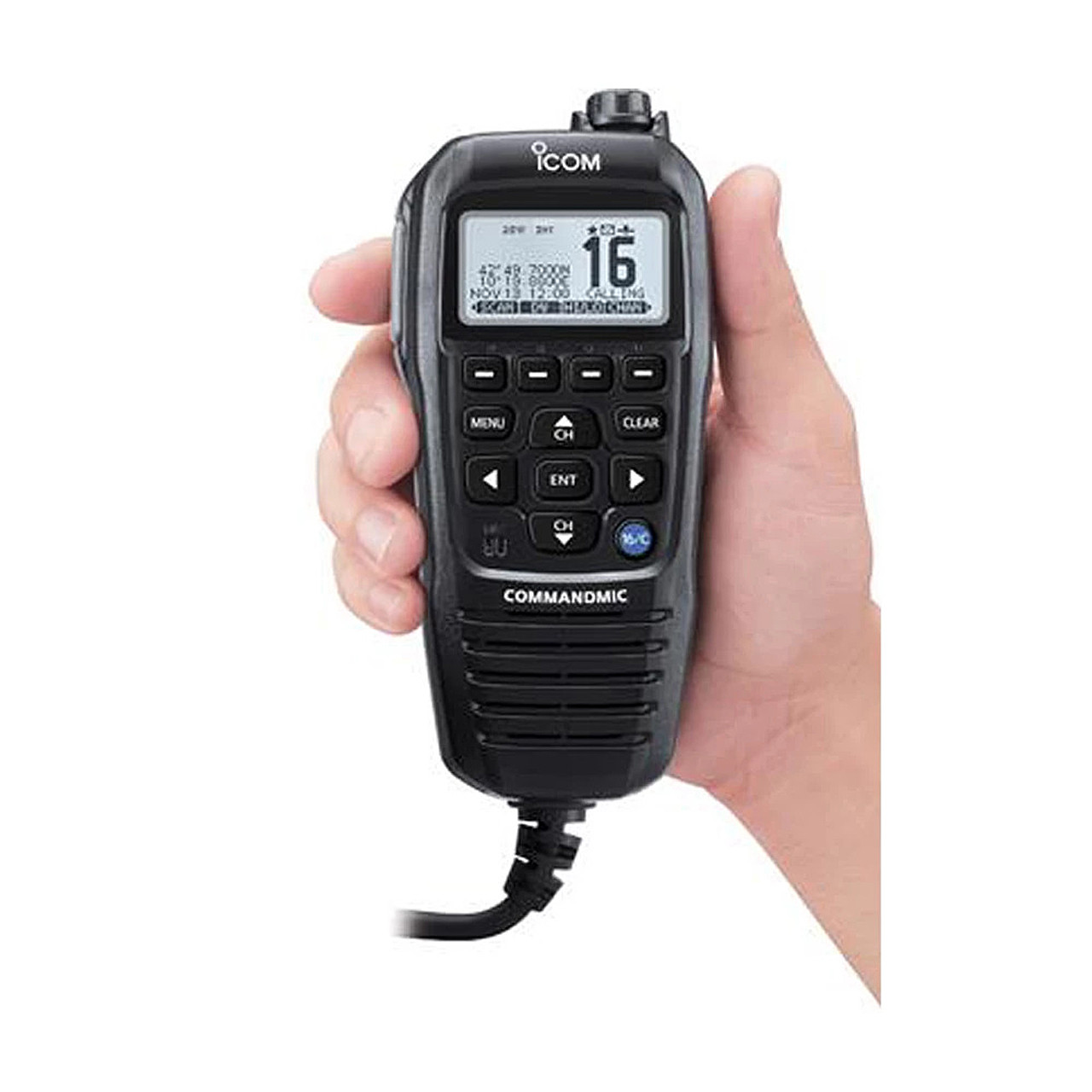

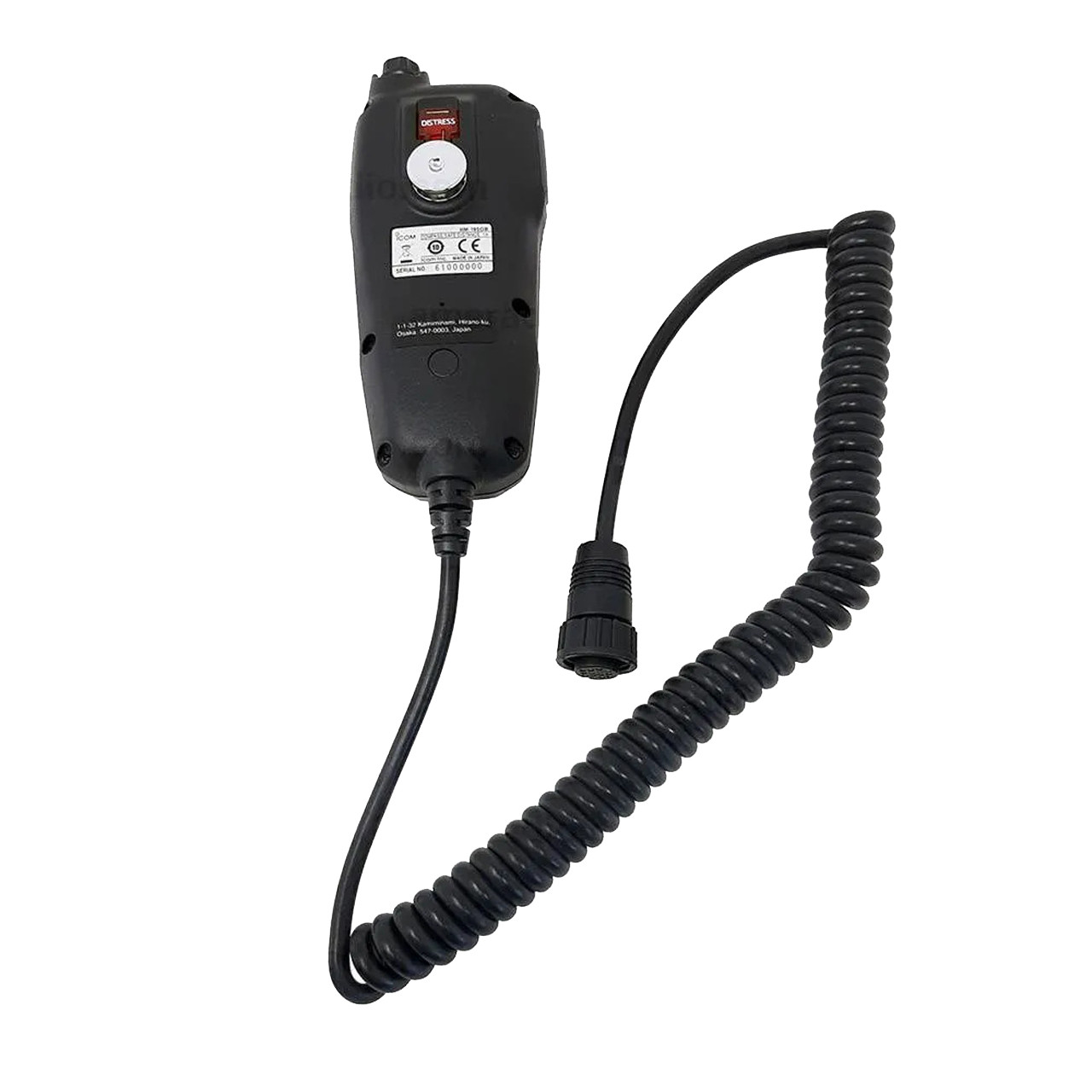

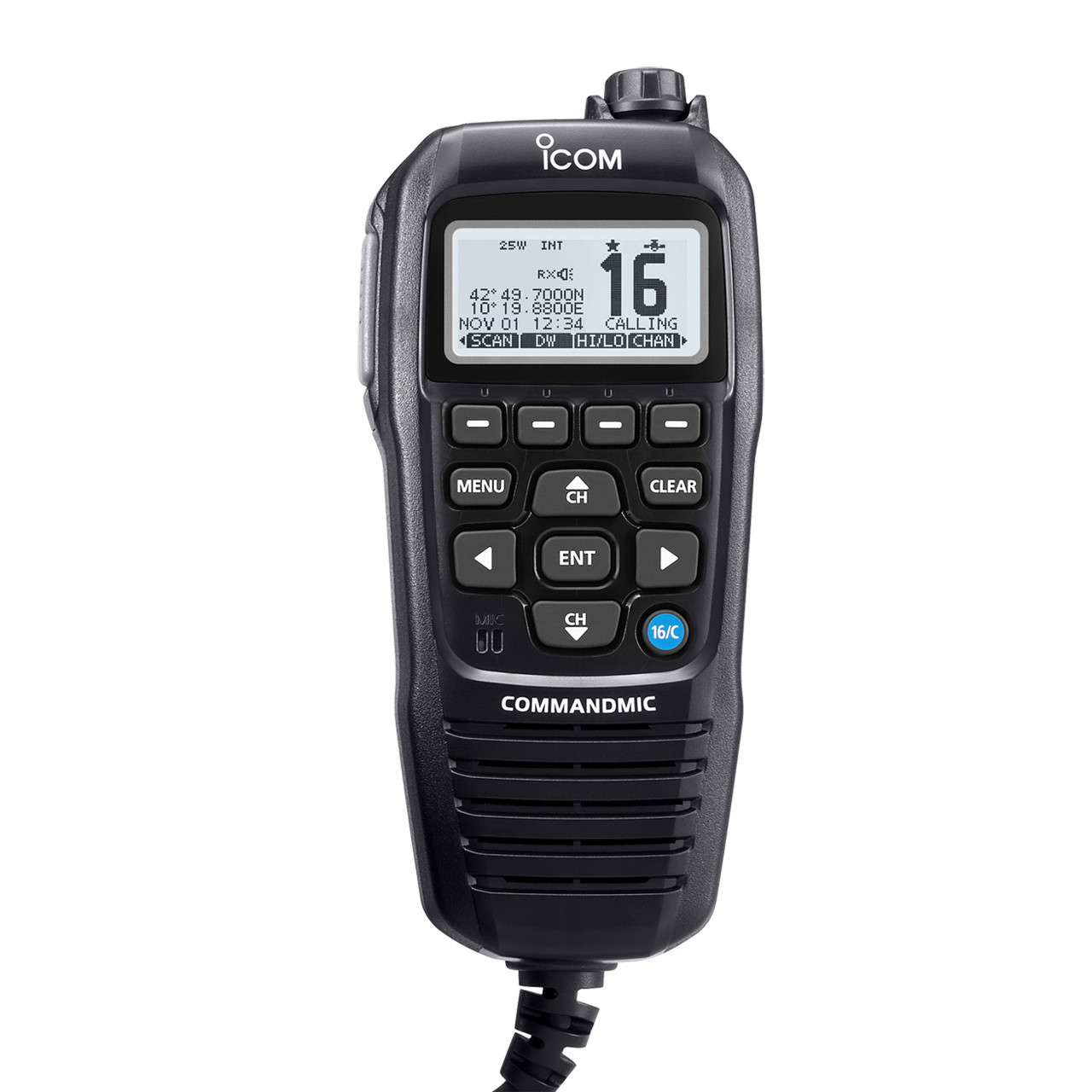

The command microphone replicates all radio functions: DSC distress call, channel selection, squelch, dual watch, and PA. The dedicated DSC "Distress" button on the back of the unit means a crew member at the second station can initiate a distress call directly without accessing menus. The dot-matrix LCD with white backlit display and laser-cut keypad remain readable in direct sunlight and at night — the GB variant specifically has black housing with white backlit LCD, designed for dark helm environments.
Installation distance reaches 18.3 m (60.3 ft) from the radio using two optional OPC-1541 extension cables (6.1 m each, sold separately) in addition to the included 6.1 m connection cable. For IC-M605, the OPC-2384 connection cable is required instead of direct connection. The AquaQuake™ function clears water from the speaker grille using vibration — a feature that matters on an exposed flybridge in spray conditions. IP67 rating holds at 1 m depth for 30 minutes for the microphone unit itself.
The HM-195GB is the original Icom part. AXDIGITAL is an authorized Icom dealer supplying OEM accessories for commercial and recreational marine radio installations across the US.
Specification
Audio — COMMANDMIC IV Command Microphone HM-195GB
| Type | Command Microphone (COMMANDMIC IV) |
| Color | Black (with white backlit LCD) |
| Connector Type | 10-pin connector |
| Cable Length | 560 mm / 22.0 in (when curled) |
| Supplied Cable | 6.1 m (20 ft) connection cable (included) |
| Max. Remote Distance | 18.3 m (60.3 ft) with two OPC-1541 extension cables |
| IP Rating | IP67 (1 m depth for 30 minutes) |
| Audio Power Output | 2.0 W typ. @ 10% distortion with 4 Ω |
| Speaker Diameter | 45 mm |
| Operating Temperature | -20°C – +60°C |
| Dimensions (W×H×D) | 67.5 × 144.5 × 37 mm / 2.66 × 5.69 × 1.46 in |
| Weight | 400 g / 14.1 oz (excluding cables) |
| Display | Dot-matrix LCD |
| AquaQuake | Yes |
| DSC Distress Button | Yes |
| Intercom Function | Yes |
FAQ
What is the difference between the HM-195GB and the HM-195B?
Both are COMMANDMIC IV units with identical functionality and specifications. The HM-195GB has black housing with a white backlit LCD — better suited for dark helm environments and night navigation. The HM-195B has black housing with a yellow backlit LCD. The HM-195GW is the white housing version with white backlit LCD. All three share the same cable length, IP67 rating, and radio compatibility.
How far can the HM-195GB be installed from the radio?
The included 6.1 m (20 ft) connection cable allows placement up to 6.1 m from the radio. With two optional OPC-1541 extension cables (6.1 m each, sold separately), the total reach extends to 18.3 m (60.3 ft). For IC-M605 and IC-M605EURO installations, the OPC-2384 connection cable is required instead of direct connection — contact our team to confirm the correct cable configuration for your setup.
