Icom HM-195B CommandMic for IC-M605 / M510BB / M424G / M410BB
The Icom HM-195B is a CommandMic™ for fixed-mount marine VHF radios. Functionally, the CommandMic is a full-featured remote control unit that provides access to all functions of the marine radio, including Class D DSC. The device has an IPX7 ingress protection rating, allowing it to be submerged in water, and is equipped with the AquaQuake™ system to drain water. The HM-195B features a DSC button for transmitting distress signals. The model is designed for use with the IC-M424G, IC-M510BB, IC-M410BB, and IC-M605 radios.
Fast Nationwide Shipping
Technical Support & Programming
Bulk Pricing Available
Instraction
Why Professionals Choose the Icom Icom HM-195B
VHF station is standard on any serious vessel — flying bridge, tower, helm station, or crew quarters. The HM-195B CommandMic allows you to set up a fully functional control station for the main radio at any desired location up to 18.3 m (60.3 ft) away, using two OPC-1541 extension cables.

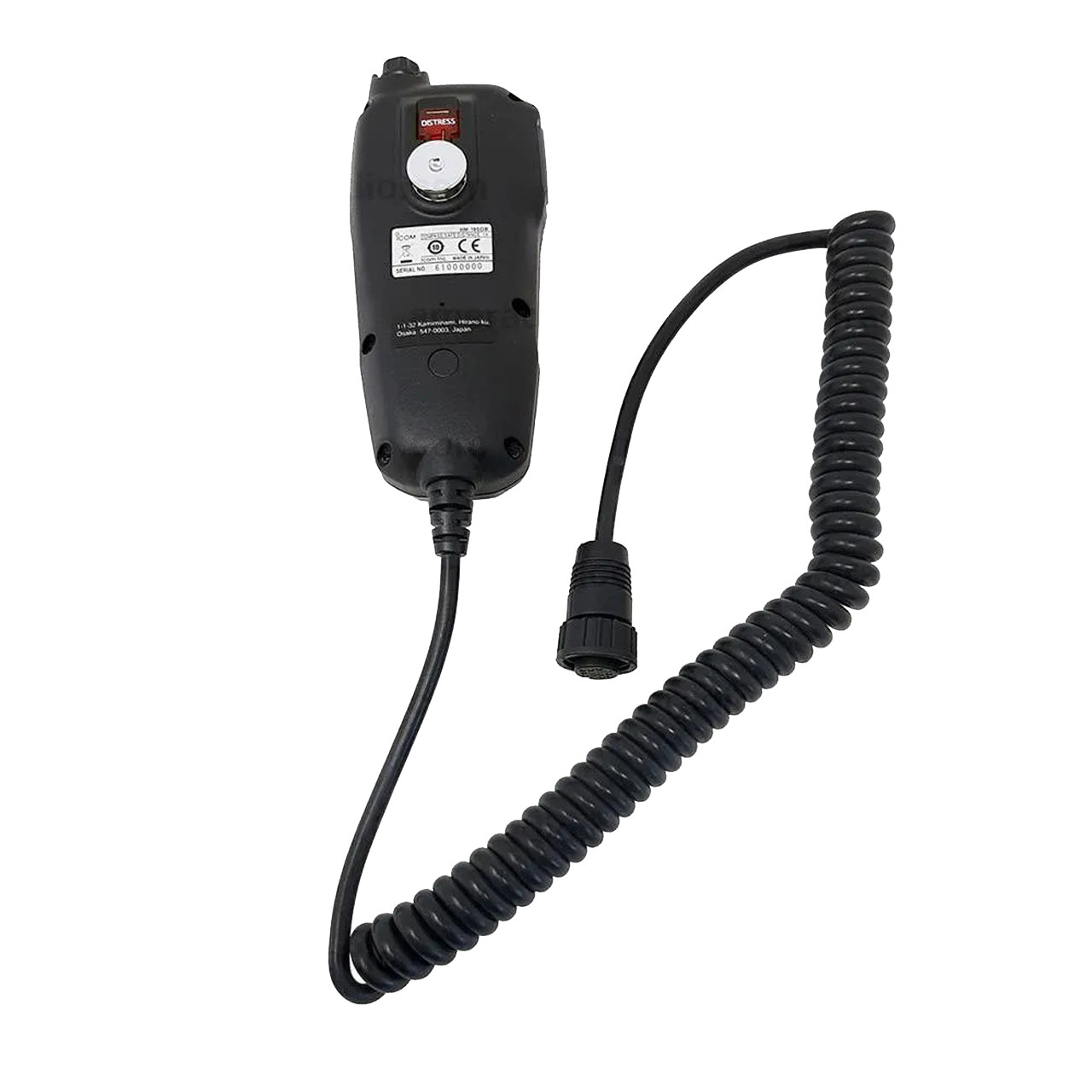

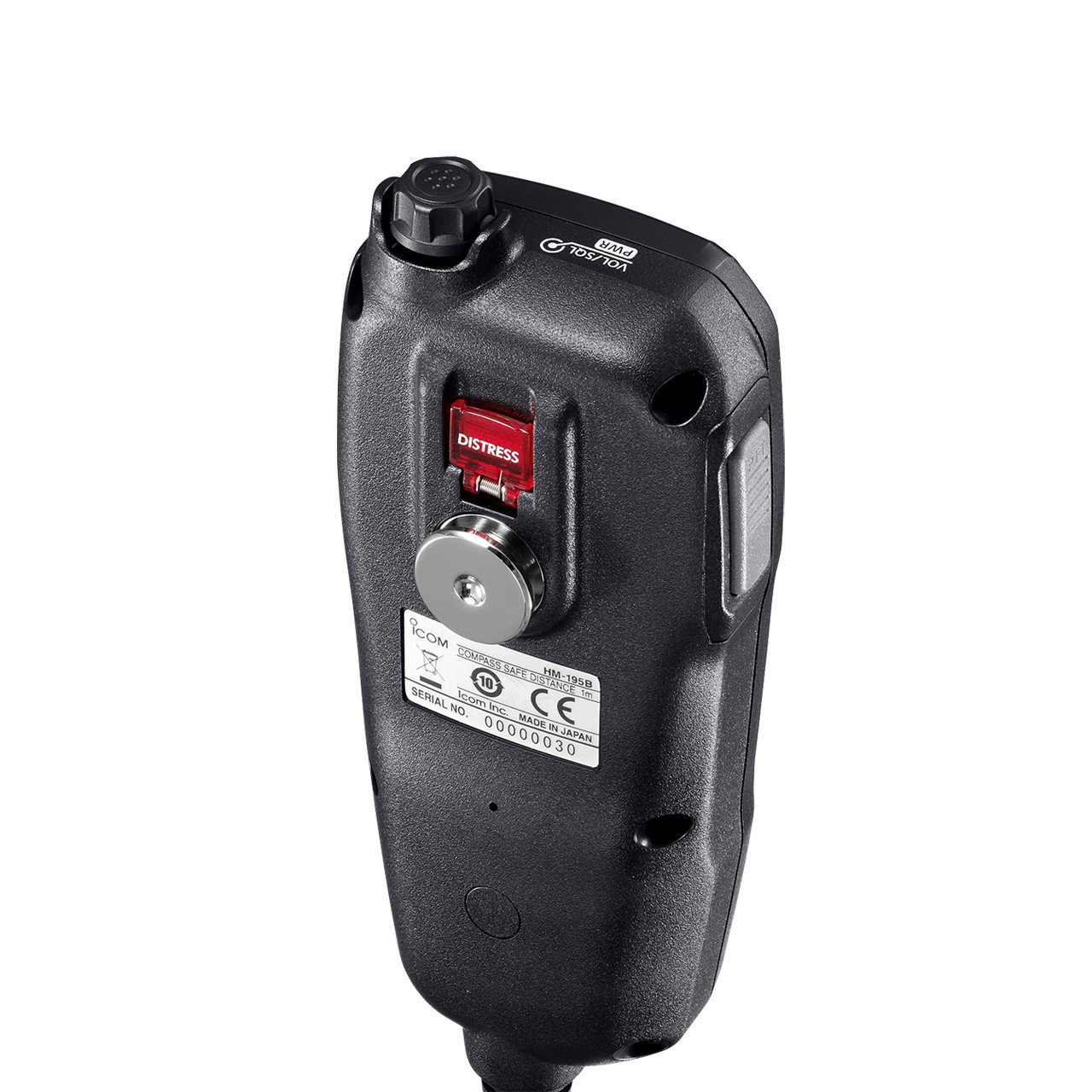

This additional control panel provides volume control, channel selection, and full DSC functionality, including distress signaling. A dedicated Distress button is located on the back of the HM-195B, shielded and separated from the keypad to prevent accidental activation.

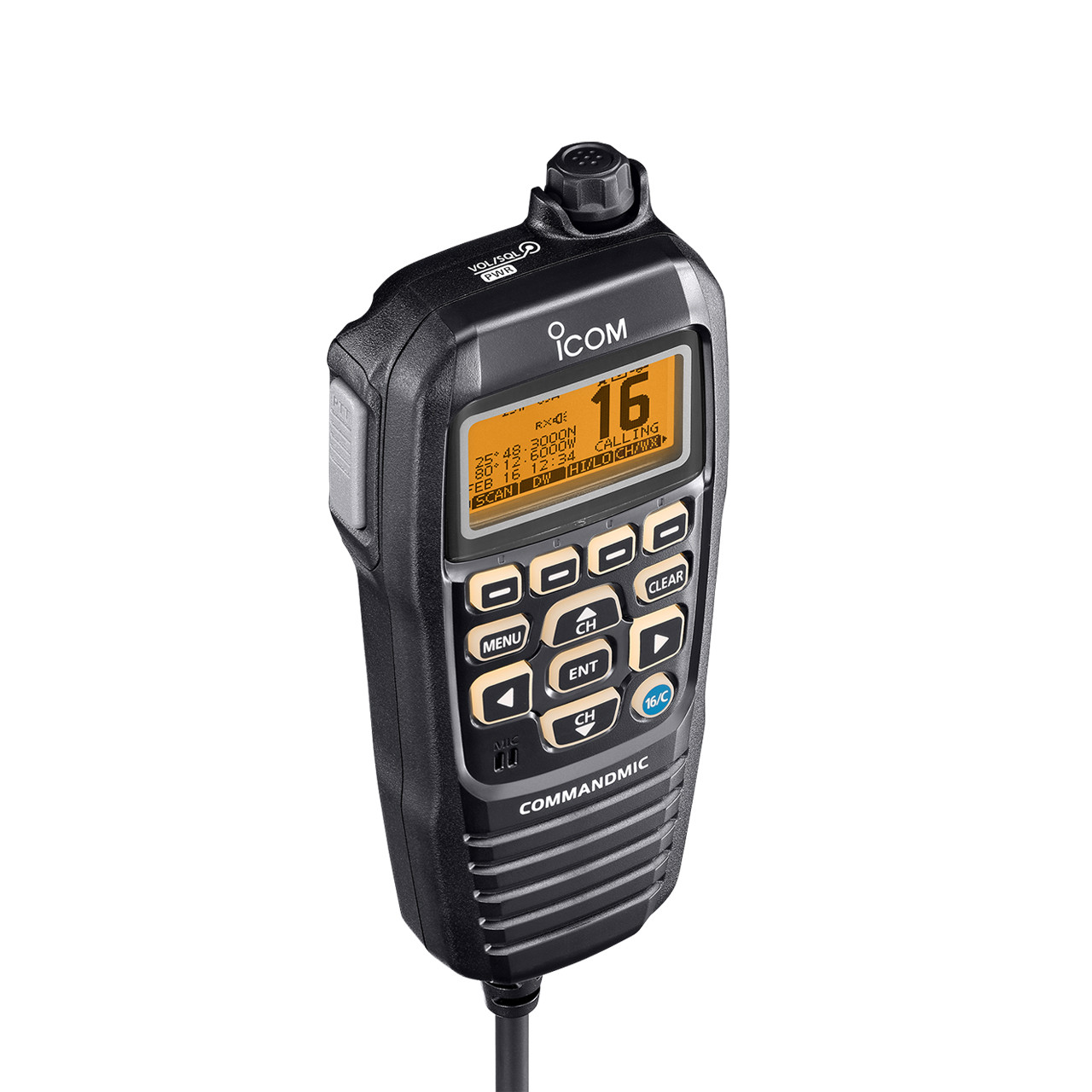

The dot-matrix display mirrors the main radio's interface. The arrow-key keypad allows control of all menus, including radio station settings. There is no need to return to the main radio unit to change the operating mode. On vessels using a "black box" configuration, the HM-195B serves as the primary operator interface (in this setup, the transceiver unit itself lacks a control panel).
The HM-195B model can be operated in the cockpit or on the open bridge of a vessel without risk of damage from spray, rain, or accidental immersion in water. The CommandMic’s high reliability is ensured by its IPX7 protection rating (capable of withstanding submersion to a depth of 1 meter for 30 minutes) and the proprietary AquaQuake™ water drainage system. At the same time, the 2.0 W audio output power (4-ohm impedance) provides sufficient volume to overcome engine or wind noise at the workstation.
The HM-195B is designed for use with the IC-M506, M424/G, M423/G, M400BB, M410BB, M510BB, M510, and M510 Evo radio series.
Specification
Command Microphone HM-195B
| Type | Command Microphone |
| Color | Black |
| Connector Type | 10-pin connector |
| Cable Length | 560 mm (when curled) |
| Supplied Cable | 6.1m (20 ft) included |
| Max. Remote Distance | 18.3m (60.3 ft) with two OPC-1541 extension cables (each cable sold separately) |
| IPX7 Rating | Yes — submersible to 1m depth for 30 minutes |
| AquaQuake | Yes |
| DSC Distress Button | Yes — located on back of unit |
| Intercom Function | Yes — compatible with IC-M506/EURO, M424/G, M423/G, M400BB, M410BB, M510BB, M510 Series, M510 Evo Series |
| Display | Dot-matrix display with software key labels on bottom line (left/right toggle) |
| Audio Power Output | 2.0 W typ. @ 10% distortion with 4 Ω |
| Operating Temperature | –20°C to +60°C (–4°F to +140°F) |
| Dimensions (W×H×D) | 67.5 × 144.5 × 37 mm; 2.66 × 5.69 × 1.46 in |
| Weight | 400 g; 14.1 oz (approx., excluding cables) |
| Compatible Radio Models | IC-M424G, IC-M605*, IC-M510BB, IC-M410BB, IC-M510 Series, IC-M510 Evo, IC-M506, IC-M400BB |
* IC-M605 requires OPC-2384 adapter cable (typically supplied with radio — confirm before ordering).
FAQ

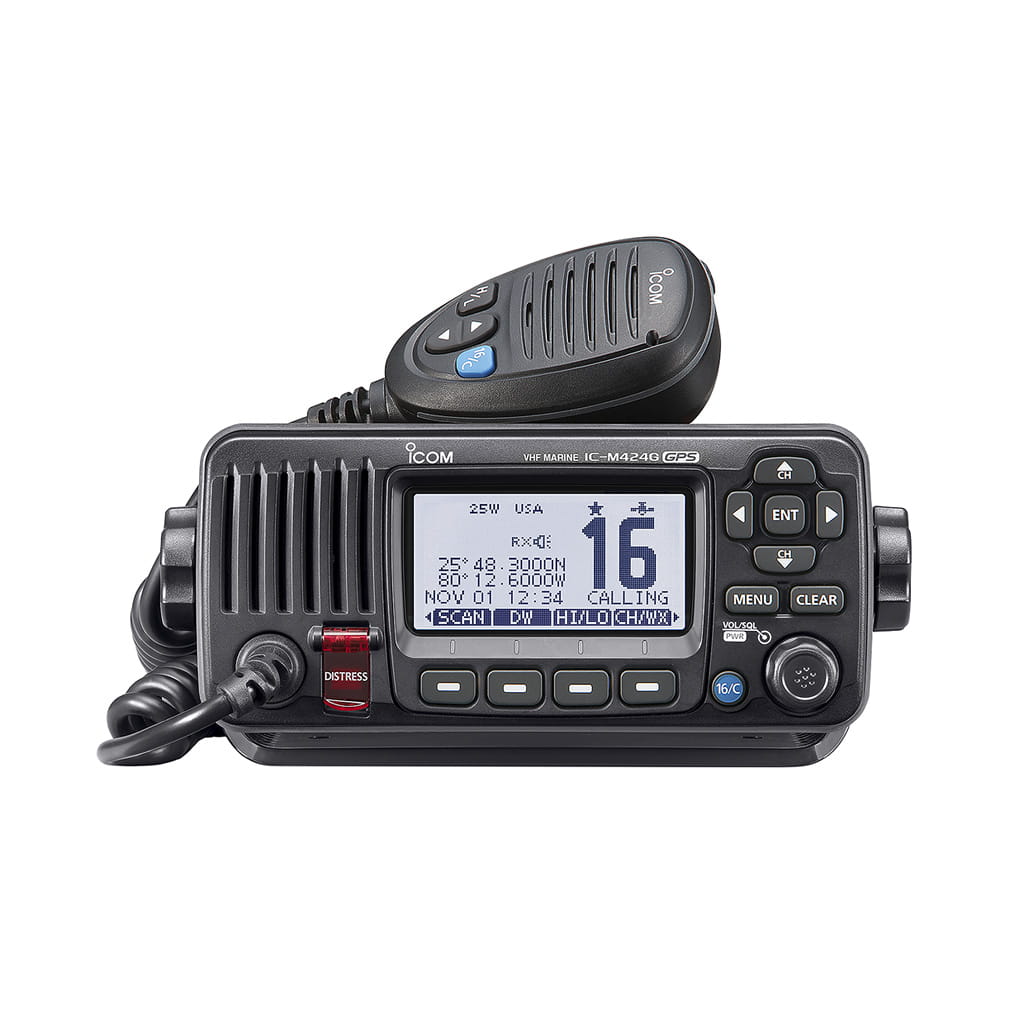

How is the Icom HM-195B connected to the IC-M424G radio?
The HM-195B CommandMic connects directly to the IC-M424G via a 10-pin connector using the included 6.1 m cable (no additional adapters are required). An intercom function is supported between the HM-195B and the main IC-M424G radio unit.
Does the HM-195B require an additional cable to connect to the IC-M605?
Yes. The IC-M605 requires the OPC-2384 adapter cable to connect the HM-195B series CommandMic. The OPC-2384 is listed as a supplied accessory with the IC-M605 (note: "not supplied depending on version"). Confirm whether your IC-M605 includes the OPC-2384 before ordering. Contact our team to verify.
