Hytera ACM-01 PTT & Mic Cable for iSeries Radios

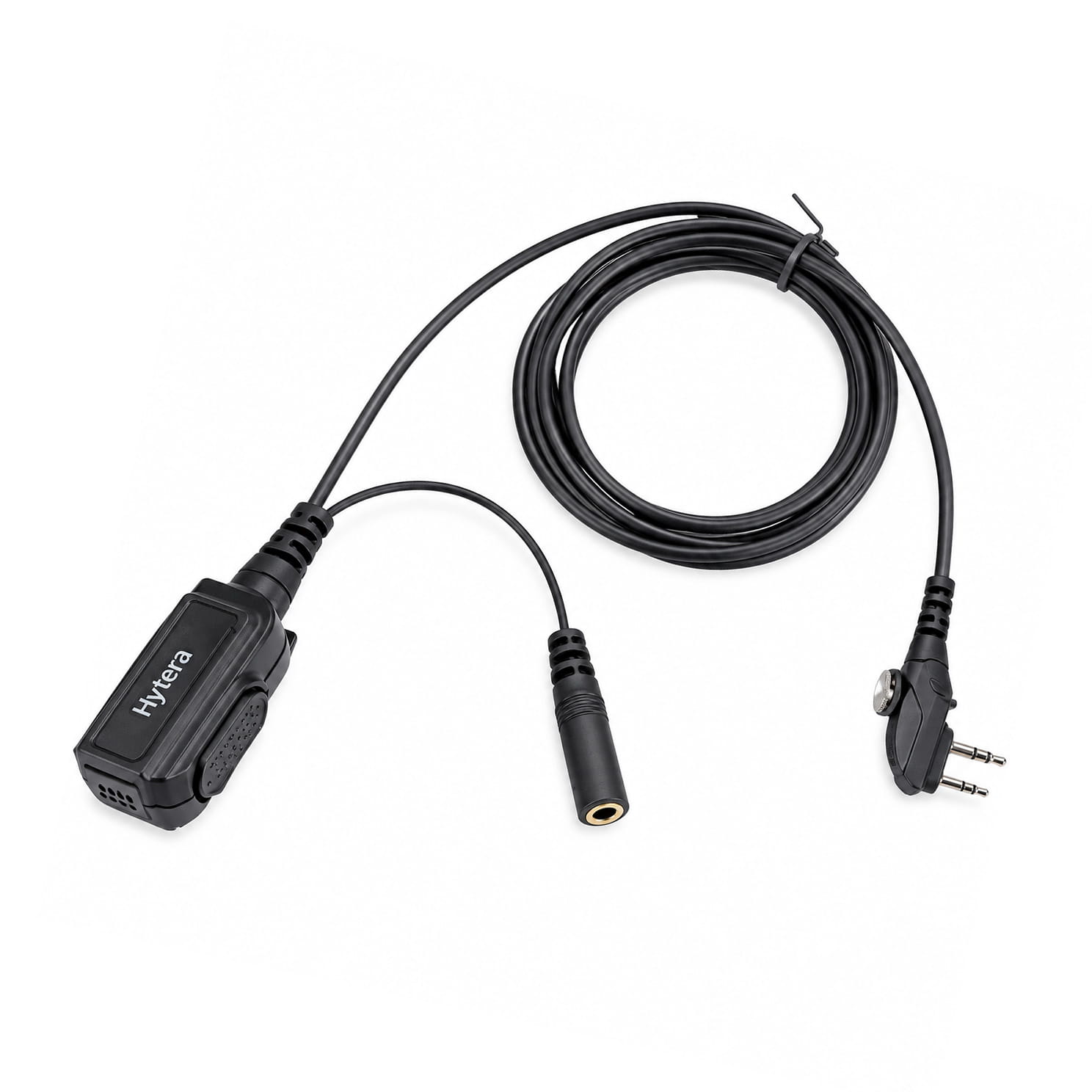

The Hytera ACM-01 is a genuine Hytera cable with a PTT button and microphone for iSeries portable radios. It connects to the radio through a two-pin connector secured with a thumbscrew. The cable is 3 ft long and has a 3.5 mm jack for connecting a separate earpiece. The earpiece is receive-only, allowing the ACM-01 and earpiece to be used together as a two-piece setup for discreet communications.
Authorized Dealer
Fast Nationwide Shipping
Technical Support & Programming
Bulk Pricing Available
Why Professionals Choose the Hytera PTT Mic Cable ACM-01
The cable has an IP54 rating, so dust and water splashes will not prevent it from being used outdoors, on a marine dock, or in poor weather conditions. The ACM-01 operates in temperatures ranging from -4°F to 140°F, making it suitable for use in refrigerated areas as well as in hot summer weather. The PTT button and microphone are mounted on a clip that attaches to a vest or lapel, allowing the user to transmit without removing the radio from the belt.
The cable is not limited to a single earpiece model. It is compatible with the Hytera ES-01, EA-01, EH-01, and EH-02 accessories, allowing the same ACM-01 cable to be used with different earpieces. As a result, the cable is compatible with a wide range of Hytera radios, including the BD502i, BD552i, BD612i, PD402i, and PD482i.
The cable is 3 ft long and weighs just 1.02 oz. Its two-pin connector and thumbscrew are designed to fit the accessory port on iSeries models. A loose third-party plug may wobble in the port and cause audio to cut out during a conversation. The ACM-01 is a genuine Hytera part, so its fit and contacts meet Hytera's specifications.
AXDIGITAL supplies the ACM-01 as an authorized Hytera dealer.
Specification
Audio — PTT and MIC Cable ACM-01
| Type | PTT-MIC audio cable (two-piece, for use with a receive-only earpiece) |
| PTT Button | Yes |
| Connector (Radio Side) | Dual-Pin, thumb-screw secured |
| Connector (Earpiece Side) | 3.5 mm audio jack socket |
| Microphone Sensitivity | –45±3 dB @ 1 kHz (3.0 V, 2.2 KΩ, 0 dB = 1 V/Pa) |
| Cable Length | 3 ft (radio connector to PTT/MIC unit) |
| IP Rating | IP54 |
| Operating Temperature | -4ºF to 140ºF |
| Storage Temperature | -40ºF to 167ºF |
| Weight | 1.02 oz |
| Color | Black |
| Certification | CE |
| Supported Earpieces | ES-01, EA-01, EH-01, EH-02 |
FAQ
Does the ACM-01 work with radios from other brands?
The radio-side dual-pin connector is shaped for the Hytera iSeries accessory port. It is not a universal 2-pin plug. Do not assume it fits Motorola or Kenwood radios, even where a 2-pin connector looks similar. The 3.5 mm earpiece side is standard and works with the four listed Hytera earpieces.
Is the Hytera ACM-01 compatible only with iSeries radios?
Hytera designates the ACM-01 for its iSeries handheld radios. What actually governs fit is the dual-pin accessory port, so a model outside the iSeries that uses the same port can also work, while an iSeries model is not a guarantee on its own.
