Hytera AN0160H13 VHF Antenna for BD502i, BD552i, BD612i Series

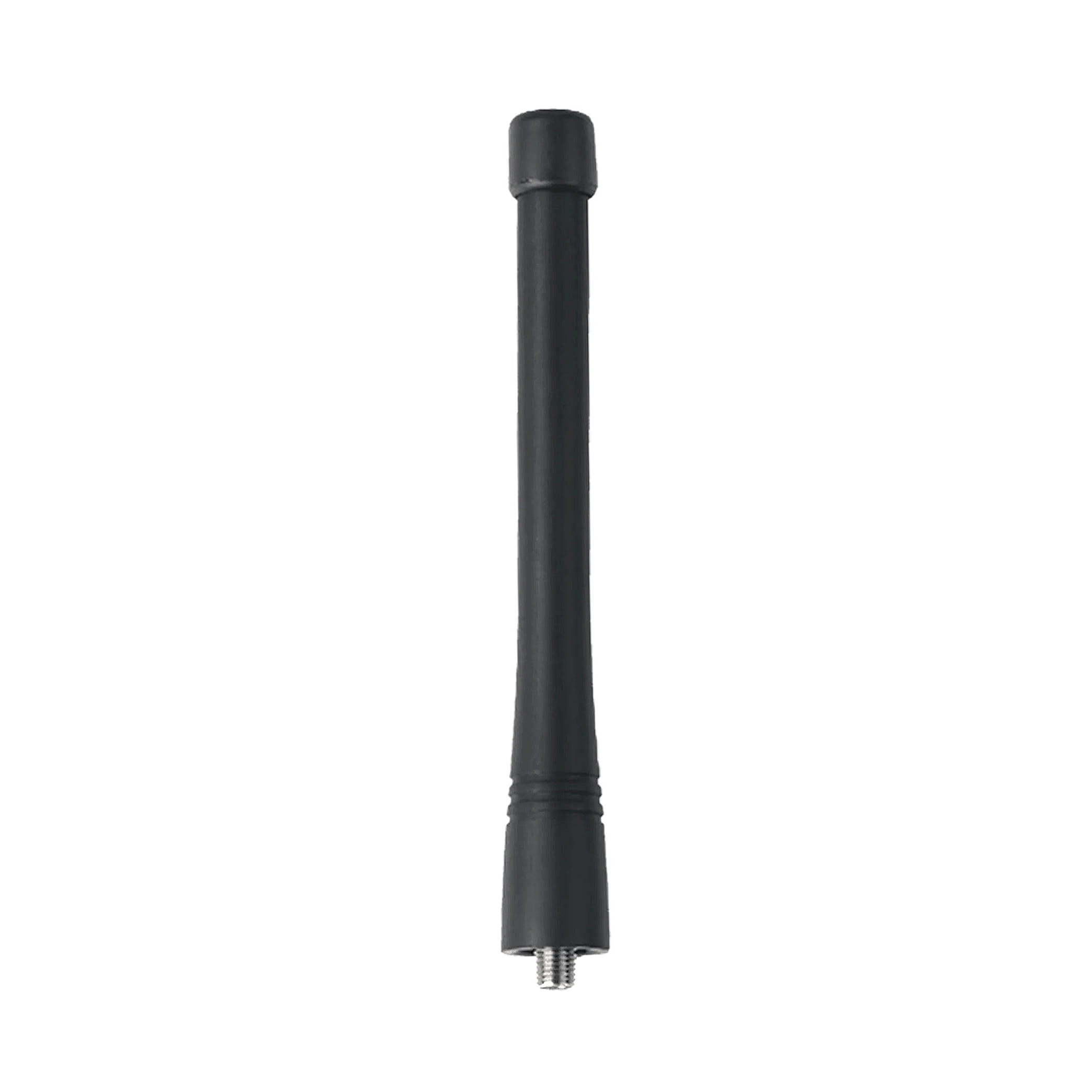

Hytera AN0160H13 is the OEM VHF antenna for Hytera BD502i, BD552i, BD612i and PD482i portable radios. It covers 146–174 MHz and attaches through an SMA connector. At 15 cm, the antenna keeps the radio compact on a belt clip or in a holster during a full shift.
Authorized Dealer
Fast Nationwide Shipping
Technical Support & Programming
Bulk Pricing Available
Why Professionals Choose the Hytera Antenna AN0160H13
The AN0160H13 operates in the 146–174 MHz frequency range. This is a standard VHF range for Hytera portable radios designed for business and industrial channels. The antenna connects to the radio via an SMA connector and has a length of 15 cm. In terms of length, it falls between a short stubby antenna and a long whip antenna. The AN0160H13 provides greater radiating length than a stubby antenna while remaining short enough to wear on a belt.
The antenna is designed for use with Hytera radios in the ТС5, PD4, BD5, PD5, and BD6 series, including the ТС508, PD482i, BD502i, BD552i, and BD612i models.
AXDIGITAL supplies the AN0160H13 as an authorized Hytera dealer.
Specification
Antenna — VHF Antenna AN0160H13
| Frequency Range | 146–174 MHz |
| Band | VHF |
| Connector | SMA |
| Length | 15 cm |
| GPS / GLONASS | No |
| Logo | Without logo |
| Color | Black |
FAQ
What is the difference between the AN0160H13 and the AN0160H14?
Hytera lists the two antennas as technically identical and interchangeable. Both cover 146–174 MHz and use the same SMA connector. The AN0160H13 is the version without a logo. Some US dealers list the AN0160H14 as discontinued and replaced by the AN0160H13. If your fleet runs AN0160H14 antennas, the AN0160H13 fits the same radios.
Is the AN0160H13 compatible with the Hytera PD785 with GPS?
No. Hytera approves the AN0160H13 for the PD705, PD755 and PD785 only in versions without GPS. The antenna has no GPS/Glonass element. A GPS-equipped radio needs an antenna that also receives the GPS signal. Otherwise the radio loses location data. Check your radio's model label or contact our team to confirm the version before ordering.
