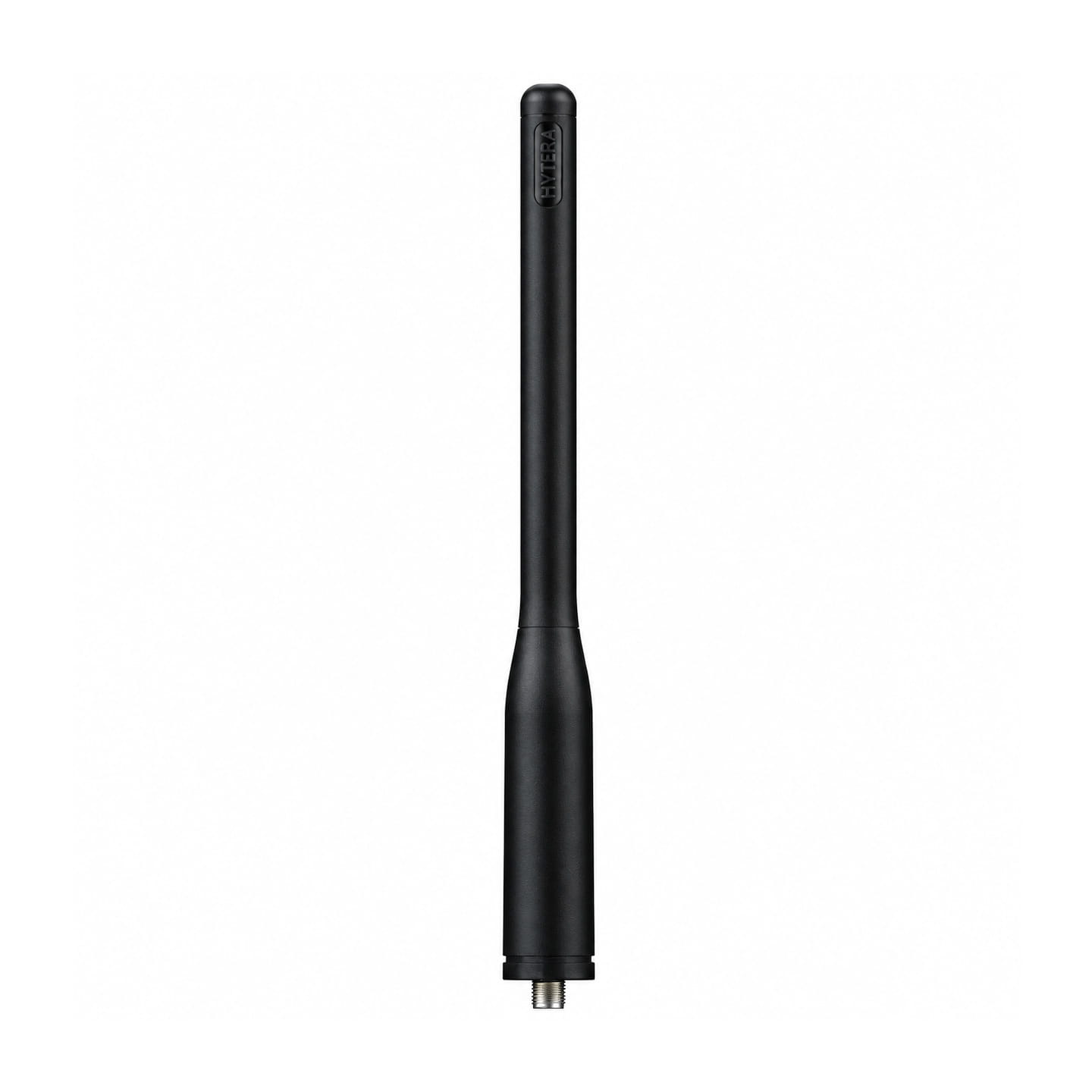

Hytera AN0167H06 VHF Antenna for BD502i, BD552i, BD612i radios
The Hytera AN0167H06 is an original VHF antenna for Hytera portable radios in the PD4, PD5, BD5, BD6, and HP6 series. It is tuned for operation in the 160–174 MHz range and connects via an SMA connector. The antenna's helical design, with a length of 17 cm, provides effective performance while maintaining a compact size.
Authorized Dealer
Fast Nationwide Shipping
Technical Support & Programming
Bulk Pricing Available
Why Professionals Choose the Hytera Antenna AN0167H06
The Hytera AN0167H06 antenna covers the upper portion of the VHF band, from 160 to 174 MHz. It features a helical design, with the radiating element wound around a brass core. The antenna is 17 cm long and uses an SMA connector. The AN0167H06 does not have a GPS/GLONASS element, and the manufacturer approves its use only with two-way radios without GPS.
The antenna is designed for use with Hytera radios in the PD4, PD5, BD5, BD6, HP6, and PD7 series, including the PD482i, BD502i, BD552i, and BD612i models.
AXDIGITAL supplies the AN0167H06 as an authorized Hytera dealer.
Specification
Antenna — VHF Helical Antenna AN0167H06
| Frequency Range | 160–174 MHz |
| Band | VHF |
| Antenna Type | Helical |
| Connector | SMA |
| Length | 17 cm |
| GPS / GLONASS | No |
| Logo | Hytera |
| Color | Black |
| Internal Element | Helical brass core |
| Certification | RoHS |
FAQ
Where are 160–174 MHz antennas typically used?
The 160–174 MHz range is the upper part of the VHF high band, which carries farther over open and rural terrain than UHF. It serves the same outdoor, wide-area work as the rest of the band: agriculture and forestry, construction and public works, transportation and logistics, and utilities. Railroads are a notable user near 160–162 MHz. It fits low-density sites where range outweighs in-building penetration.
What is the difference between the AN0167H06 and the AN0153H07?
Hytera makes 17 cm SMA antennas for these radios in three VHF segments. The AN0141H06 covers 136–147 MHz. The AN0153H07 covers 147–160 MHz. The AN0167H06 covers 160–174 MHz. Choose the part that matches the frequencies your radios are programmed on. If your channels fall in more than one segment, send us the channel plan before ordering.
Is the AN0167H06 compatible with the Hytera TC-610?
Hytera does not list the TC-610 for the AN0167H06. The analog models on its list are the TC-700 and TC-780. For the TC-610, Hytera lists the AN0160H13. That antenna is 15 cm long and covers 146–174 MHz. Contact our team to confirm the right antenna for a fleet that mixes TC-610 and TC-700 radios.
