Hytera EH-02 Receive-Only Swivel Earpiece for H-Series & i-Series Radios

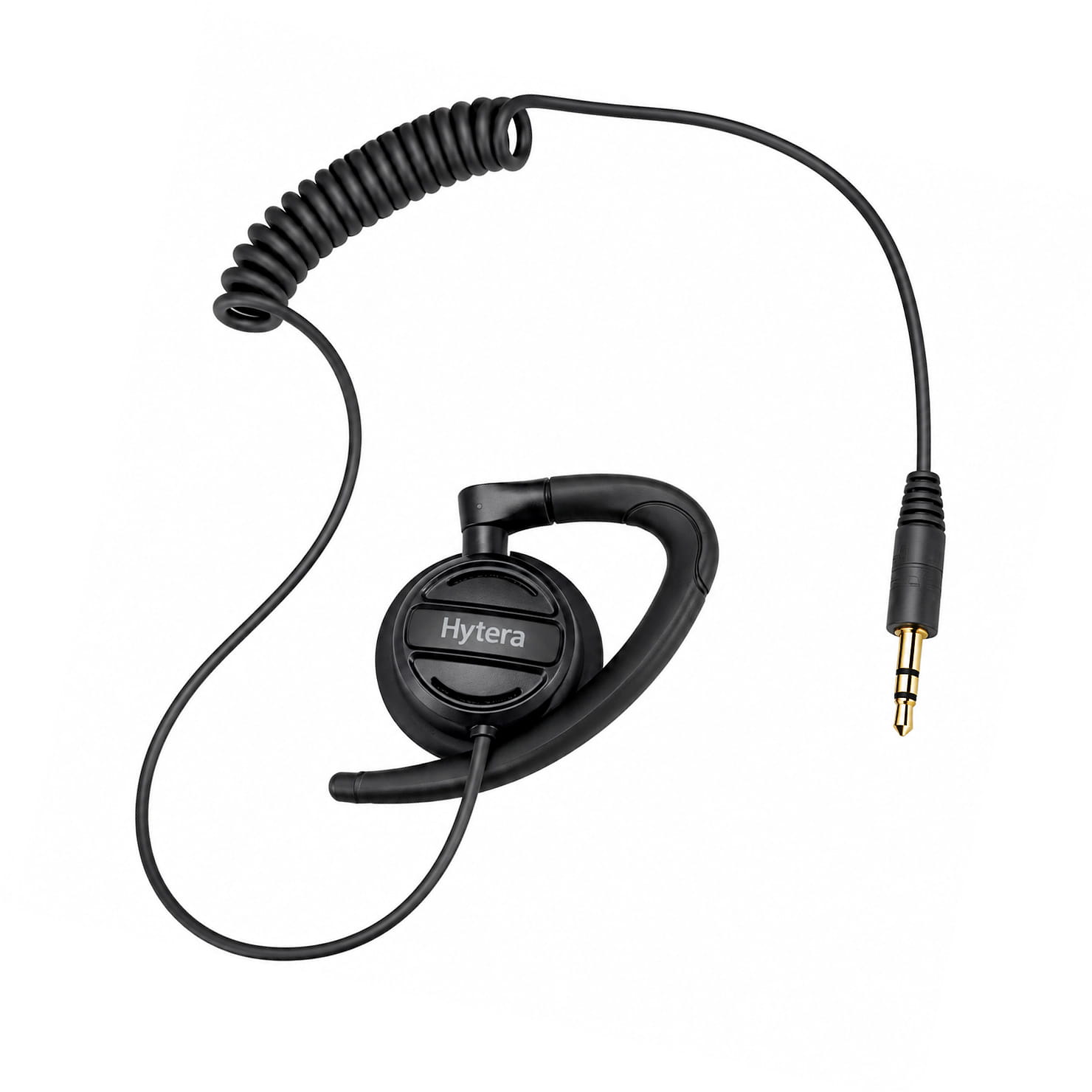

The Hytera EH-02 is a genuine swivel earpiece designed exclusively for receive-only use with Hytera H-Series and iSeries portable radios. The EH-02 connects to a PTT/MIC audio cable through a 3.5 mm jack rather than directly to the radio. The C-shaped ear hook swivels for use on either the left or right ear and sits outside the ear canal, allowing the earpiece to be worn comfortably all day.
Authorized Dealer
Fast Nationwide Shipping
Technical Support & Programming
Bulk Pricing Available
Why Professionals Choose the Hytera Earpiece EH-02
The EH-02 earpiece is designed for receive-only use and does not have a microphone or PTT button. The speaker has a rated power of 50 mW and a peak power of 100 mW at a 150-ohm load. The output level is 115 ± 3 dB at 1 kHz, providing enough volume for clear audio in a busy lobby or on a manufacturing floor. Weighing just 0.6 oz, the earpiece adds very little weight to the ear hook. It operates in temperatures ranging from -4°F to 140°F, making it suitable for both outdoor use and refrigerated areas.

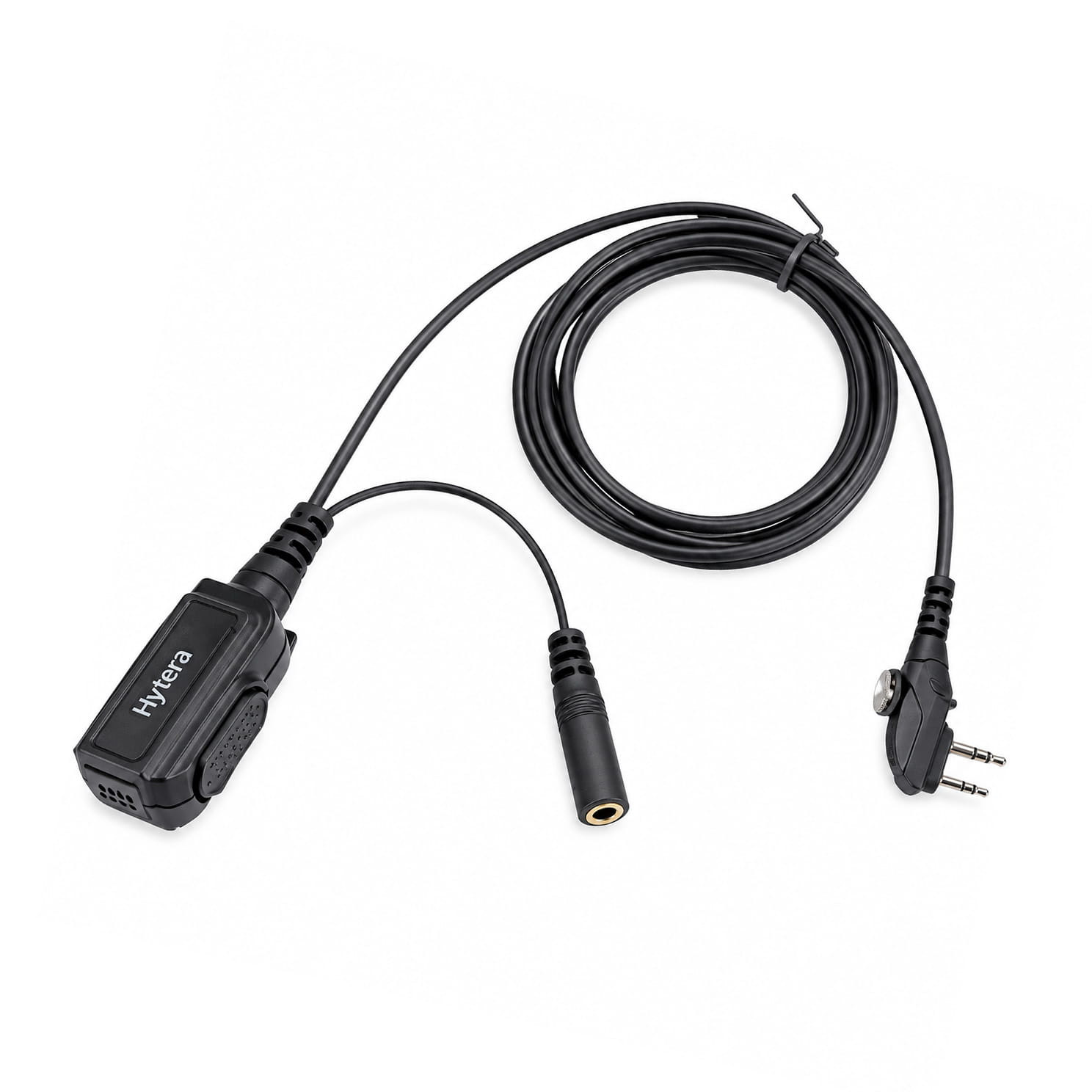

The EH-02 swivel earpiece connects to the radio only through a PTT/MIC cable that matches the radio's accessory connector. The ACN-02P is used with Hytera H-Series radios, the ACS-01 with the compact BD302i and PD362i models, and the ACM-01 with the TC508 and BD/PD iSeries radios. Using an original Hytera earpiece helps maintain a clean 3.5 mm connection and ensures audio performance in accordance with Hytera's specifications.
Specification
Audio — Receive-Only Swivel Earpiece EH-02
| Type | Receive-only earpiece (behind-the-ear C-style swivel hook) |
| Connector (to PTT/MIC cable) | 3.5 mm audio jack plug |
| Speaker Power | 50 mW (rated), 100 mW (max.) |
| Speaker Impedance | 150 Ω ± 15% @ 2.0 kHz |
| Speaker Frequency Response | 115±3 dB @ 1 kHz at 50 mW |
| Operating Temperature | -4ºF to 140ºF |
| Storage Temperature | -4ºF to 185ºF |
| Weight | 0.6 oz |
| Color | Black |
| Wearing Style | Behind-the-ear C-style hook, swivels for left or right ear |
| Compatible PTT/MIC Cables | ACN-02P, ACM-01, ACS-01, ACN-01 |
| Compatible Radios | Via cable — see Compatible Radios section |
FAQ
Does the EH-02 include the cable, or is it sold separately?
The EH-02 is sold as the earpiece only. The PTT/MIC cable that connects to the radio is a separate part. Choose the cable by radio model, then pair it with the EH-02. This keeps the earpiece reusable if you change radios and only swap the cable.
Will the EH-02 3.5 mm plug work with other brands' earpiece cables?
The 3.5 mm plug is shaped to mate with Hytera PTT/MIC cables. A 3.5 mm plug is common, but the audio level and pinout are set for Hytera's cables. Do not assume it matches another brand's cable jack. Use the EH-02 with the Hytera cables listed for it.
