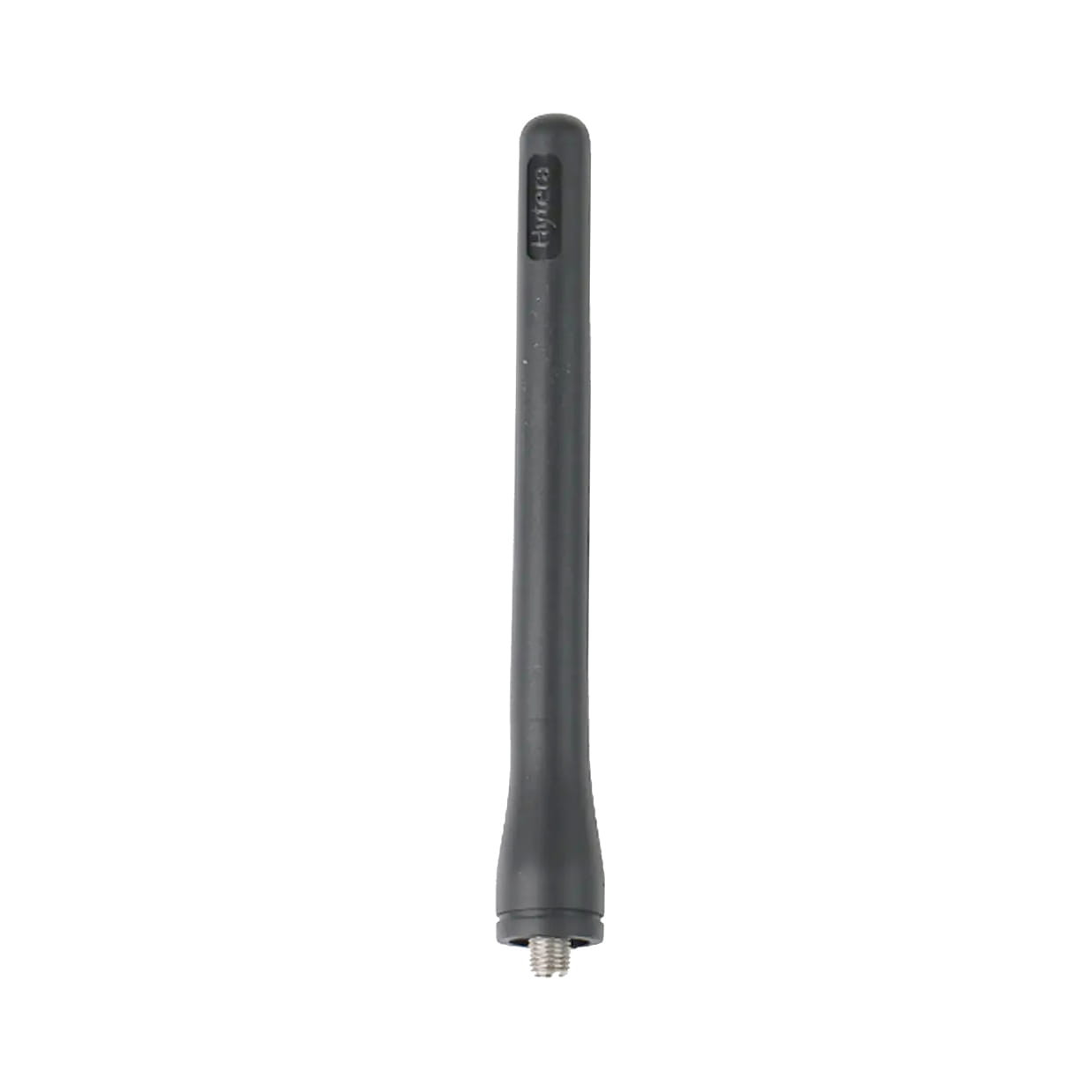

Hytera AN0141H07 VHF/GPS Antenna for BD502i / BD552i / BD612i Series
The Hytera AN0141H07 is an original short (12 cm) antenna for the VHF band (136–147 MHz). It also operates at 1575 MHz for GPS and is equipped with an SMA connector. The antenna is designed for Hytera BD/PD series portable radios, specifically: BD502i, BD522i, BD612i, PD502i, and PD702i.
Authorized Dealer
Fast Nationwide Shipping
Technical Support & Programming
Bulk Pricing Available
Why Professionals Choose the Hytera Antenna AN0141H07
A facilities or security team running Hytera i-series portables on a VHF system usually finds the antenna fails before the radio does. A cracked or bent antenna base leaks signal at the connector and drops range across the site. The AN0141H07 is the direct OEM replacement for BD502i, BD522i, BD612i, PD502i and PD702i units designed for the 136–147 MHz band. It threads onto the same SMA port, so a swap takes seconds and needs no tools.
The antenna is a 12 cm helical stubby with a brass core. In addition to the 136–147 MHz band for voice communication, it supports the 1575 MHz band for GPS, so it can be installed on a number of Hytera radios with location tracking capabilities. The short length keeps the radio profile low for belt or vest carry through a full shift. One point matters at ordering: this antenna is tuned to 136–147 MHz only. A radio programmed above 147 MHz needs a different VHF antenna, such as the AN0167H07 for the higher sub-band.
If it becomes necessary to replace the AN0141H07 antenna (or any other), ensure that the selected replacement has matching specifications. An incorrectly selected antenna leads to an increased VSWR (Voltage Standing Wave Ratio) and reduced effective operating range—issues that are difficult to diagnose in the field.
AXDIGITAL is an authorized Hytera dealer and supplies the AN0141H07 as an OEM part for BD/PD i-series fleets.
Specification
Antenna — VHF/GPS Helical Stubby Antenna AN0141H07
| Frequency Range | 136–147 MHz / 1575 MHz (GPS) |
| Band | VHF (with GPS) |
| Antenna Type | Helical stubby |
| Connector | SMA |
| Length | 12 cm (4.7 in) |
| Color | Black |
| Internal Element | Brass (helical core) |
| Certification | RoHS |
FAQ
What is the difference between the AN0141H07 and the AN0141H06?
Both devices operate in the 136–147 MHz VHF band and feature an SMA connector. The AN0141H07 is a helical antenna that supports GPS at 1575 MHz; its 12 cm length and compact size allow the radio to be worn on a belt. The AN0141H06 is a 17 cm whip antenna for the same frequency range, offering greater range due to its taller profile. Choose the model based on your preferred carrying method and required range.
