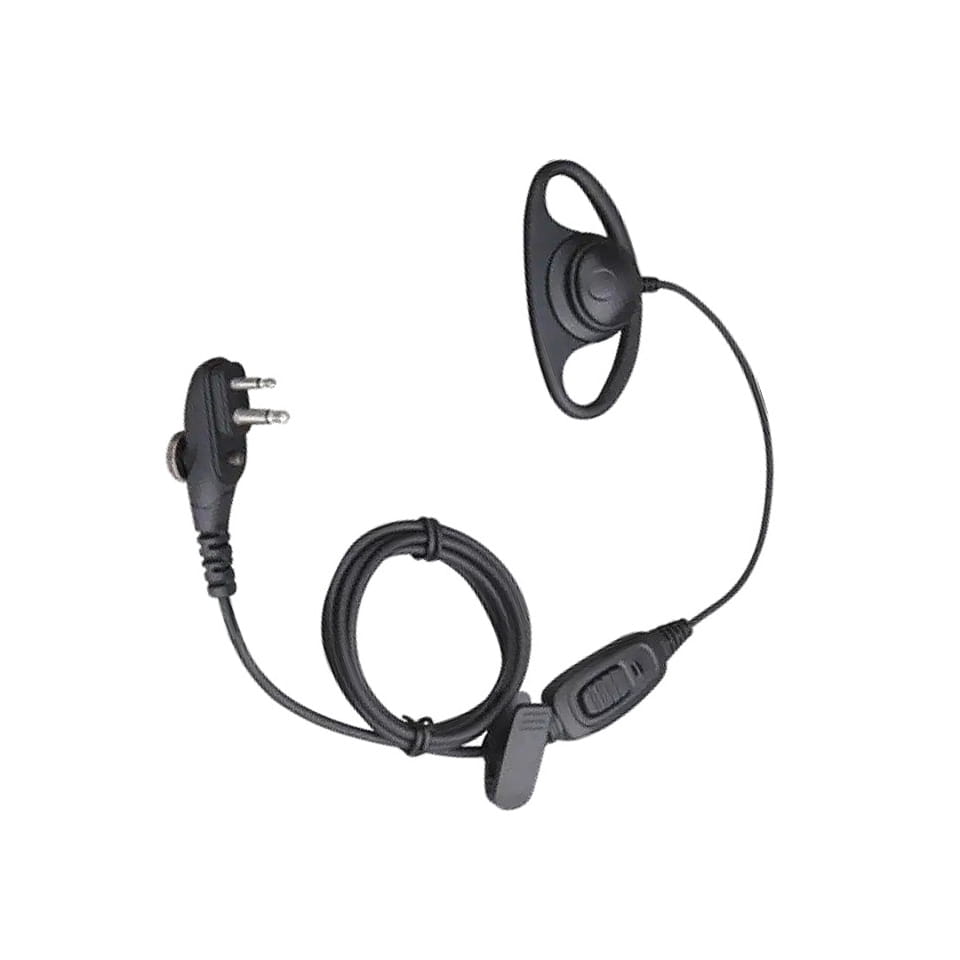

Hytera EHM15-A D-Style Earpiece with In-Line PTT and VOX
The Hytera EHM15-A is a D-style earpiece with an in-line PTT and microphone. The headset is designed for Hytera BD, PD, and TC series radios. It hooks over either ear and clips the PTT and mic to clothing, so the user talks without handling the radio. It also supports VOX for hands-free voice activation.
Authorized Dealer
Fast Nationwide Shipping
Technical Support & Programming
Bulk Pricing Available
Why Professionals Choose the Hytera EHM15-A D-Style Earpiece
The EHM15-A hooks over the left or right ear and clips the PTT and microphone to a collar or lapel. The device supports the VOX function for hands-free voice transmission; however, this function must be activated during radio programming. The earpiece weighs about 45 g and connects through the Hytera 2-pin (dual-jack) accessory port. The Hytera EHM15-A has no IP rating; therefore, it should be used indoors or protected from moisture when used outdoors.
Specification
Hytera EHM15-A D-Style Earpiece & Microphone
| Accessory Type | Earpiece (D-style) with in-line PTT & microphone |
| Style | D-style ear hook |
| Weight | approx. 45 g |
| Color | Black |
| PTT Key | YYes (in-line) |
| Microphone | Yes (in-line) |
| VOX | Yes |
| Emergency Key | None |
| Radio Connector | 2-pin (dual-jack) |
| Microphone Sensitivity | -42 ±3 dB @1kHz |
| Speaker Powerr | 50 mW rated / 100 mW max |
| Speaker Impedance | 150 Ω ±15% @1kHz |
| Speaker Frequency Response | 91 ±3 dB @1kHz |
| Operating Temperature | -20 to 60 °C (-4°F to 140°F) |
| Storage Temperature | -40 to 85 °C |
