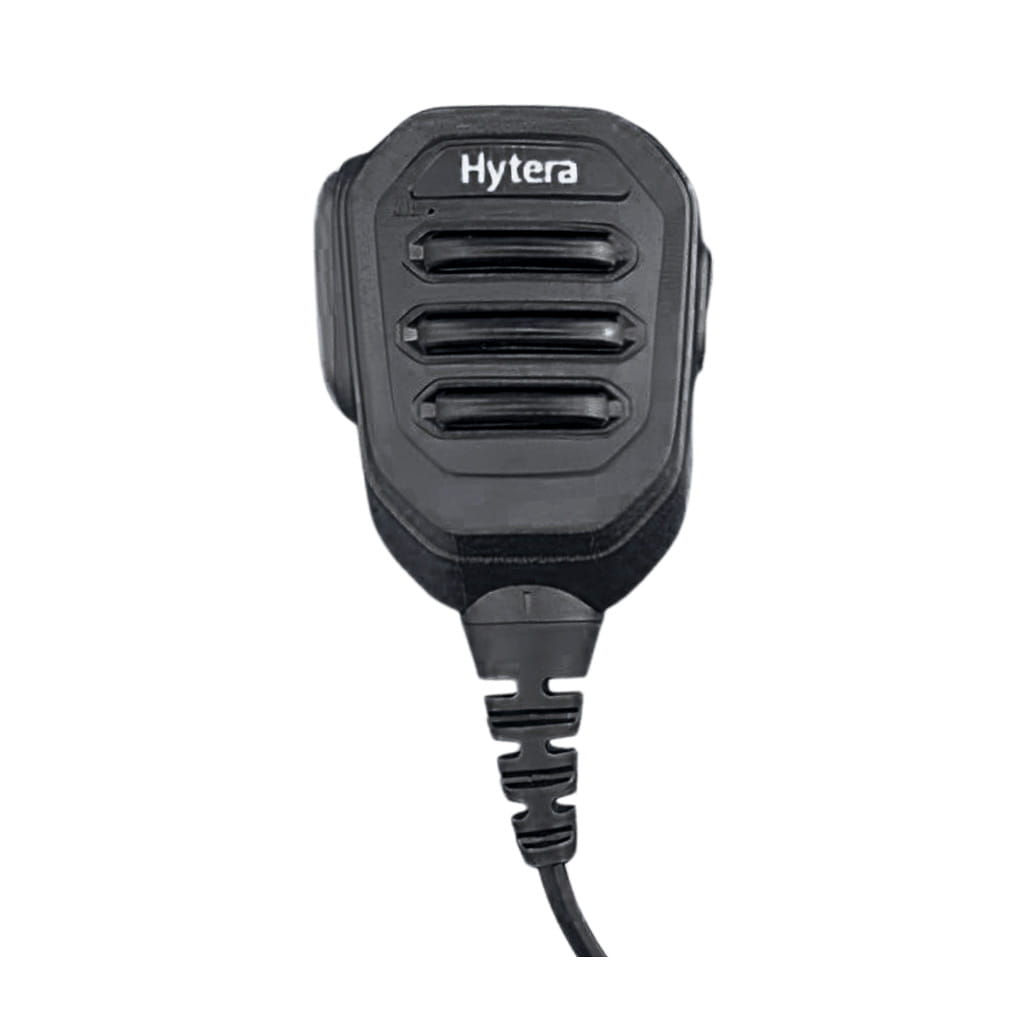

Hytera SM50M1 Remote Speaker Microphone for Hytera iSeries Radios
The Hytera SM50M1 is a rugged, shoulder-mounted remote speaker microphone for Hytera iSeries DMR portable radios. It has a large PTT key, a coiled 6-foot cable, and a 3.5 mm jack for a receive-only earpiece.
Authorized Dealer
Fast Nationwide Shipping
Technical Support & Programming
Bulk Pricing Available
Why Professionals Choose the Hytera Remote Speaker Microphone SM50M1
The SM50M1 puts the speaker and PTT at chest or shoulder level, so the user talks and listens without unclipping the radio.
The SM50M1 is built for rough use. The housing is rated IP67 on its own, so it holds up against dust and short immersion. With a receive-only earpiece in the 3.5 mm jack, the rating is IP54 for dust and splash. The speaker is rated 2 W, with 3 W peak, which cuts through ambient noise. The microphone features
AXDIGITAL is an authorized Hytera dealer and supplies the SM50M1 as an OEM part.
Specification
Remote Speaker Microphone — Hytera SM50M1
| Accessory Type | Remote Speaker Microphone (RSM) |
| Dimensions (H×W×D) | 3.2 in × 2.3 in × 1.7 in |
| Weight | 5.7 oz |
| Cord Length | 6 ft (fully extended, coiled) |
| Color | Black |
| PTT Key | Yes |
| Audio Accessory Connector | 3.5 mm (receive-only earpiece) |
| Microphone Sensitivity | -45 ±3 dB @1 kHz |
| Speaker Powerr | 2 W rated / 3 W max |
| Speaker Impedance | 16 Ω ±15% @2 kHz |
| IP Rating | P67 |
| Certification | CE |
| Operating Temperature | -4°F to 140°F |
| Storage Temperature | -40°F to 167°F |
| Replaces | SM08M3 [VERIFY — dealer-sourced, widely consistent] |
FAQ
Which Hytera radios does the SM50M1 work with?
The SM50M1 connects through the Hytera commercial accessory port and is listed for iSeries portables such as the PD402i, PD482i, and PD502i, along with BD5-series radios. The exact fit depends on your radio's connector. Confirm your model with our team before ordering, and we will verify the connector and firmware fit for your fleet.
Does the waterproof rating change when I plug in an earpiece?
Yes. On its own, with the audio port cover closed, the SM50M1 is rated IP67 for dust and short water immersion. When you connect a receive-only earpiece to the 3.5 mm jack, the sealed rating drops to IP54, which protects against dust and splashes. Keep the port cover closed whenever no earpiece is in use.
