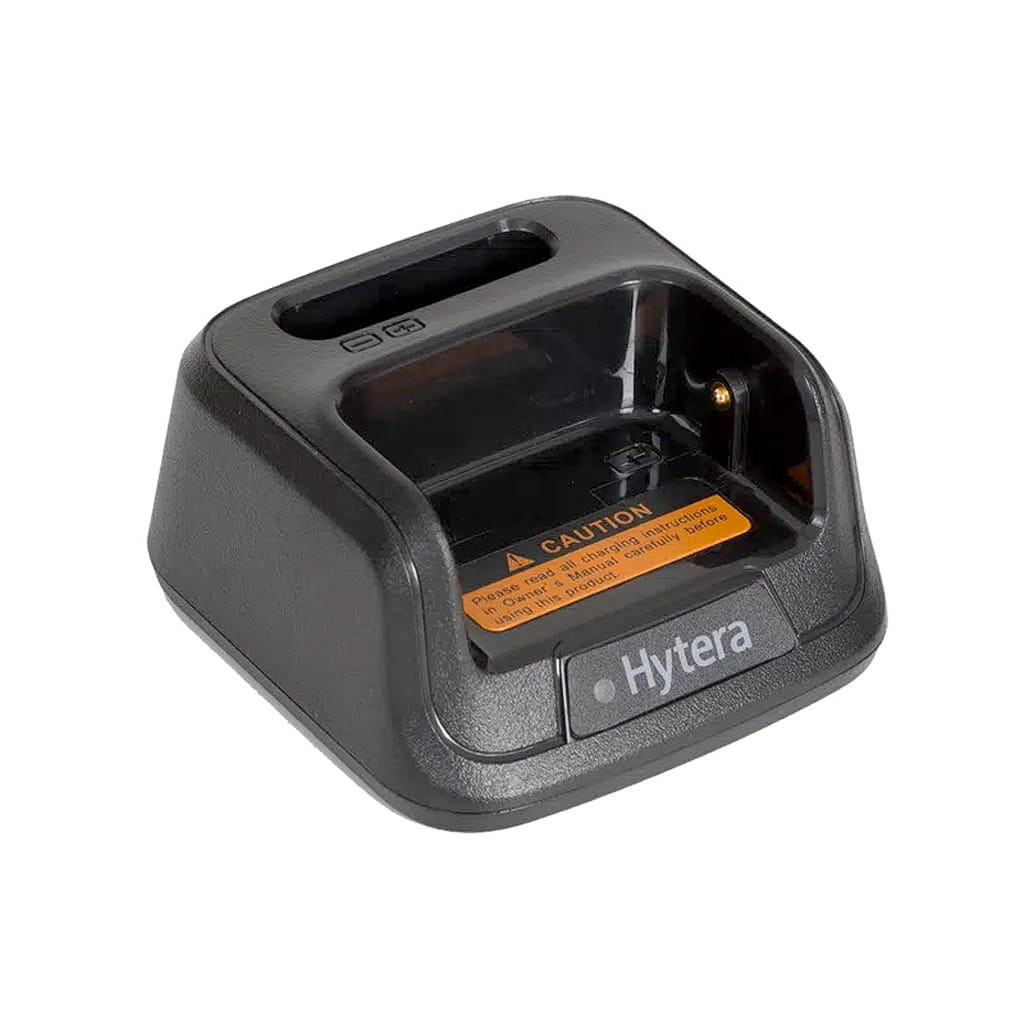

Hytera CH10L22 Rapid-Rate Dual-Pocket Charger for BD302i / BD352i
The Hytera CH10L22 is the OEM dual-pocket desktop charger for the Hytera BD302i and BD352i DMR portable radios. It allows you to charge both the two-way radio and a BL2202 spare battery simultaneously at a current of up to 850 mA. It works with the PS1030 power supply (sold separately). Thanks to its compact size, the CH10L22 fits on a dispatch desk without taking up much space.
Authorized Dealer
Fast Nationwide Shipping
Technical Support & Programming
Bulk Pricing Available
Why Professionals Choose the Hytera Charger CH10L22
In busy retail and hospitality operations, teams run their BD302i and BD352i radios all shift. A battery often drains before the shift ends. A charged spare has to be ready for a quick swap. The CH10L22 answers that with two pockets on one base. The radio charges in the front pocket while a spare BL2202 pack charges behind it. A shift lead keeps one radio in service and one battery ready, so the swap takes seconds instead of pulling a unit off the floor.
The charger delivers up to 850 mA to Li-Ion packs. It is powered by a PS1030 adapter (5 V, 1 A DC) with a micro-USB connector. The Dual-Pocket Charger measures 3 x 2.9 x 1.4 inches and weighs about 2.5 ounces, so you can place several units side by side on the control desk.
The CH10L22 is the original Hytera charger for the BD3-series. Aftermarket trays exist, but contact geometry and current regulation on the OEM base are matched to the BL2202 pack. A mismatched tray can undercharge or stress the cells. For a fleet of radios that already includes the Hytera BD302i and BD352i models, the OEM charging base ensures a consistent charging process across all units.
AXDIGITAL is an authorized Hytera dealer and supplies the CH10L22 with OEM parts for existing BD3-series fleets.
Specification
Charger — Rapid-Rate Dual-Pocket Desktop Charger CH10L22
| Charger Type | Dual-pocket desktop drop-in charger |
| Max. Charging Current | 850 mA |
| Input | 5 V DC, 1 A (supplied by PS1030 adapter) |
| Number of Slots | 2 pockets (1 radio + 1 battery) |
| Dimensions (H×W×D) | 3 x 2.9 x 1.4 in |
| Weight | 2.5 oz |
| Power Supply | PS1030 (US plug, 5 V DC / 1 A, micro-USB) |
| Compatible Radio Models | BD302i, BD352i |
FAQ
How fast does the CH10L22 charge?
Hytera does not publish an official charge time for the CH10L22. Based on its 850 mA charging current and the 2200 mAh BL2202 battery, a fully drained pack reaches full charge in roughly 3 to 4 hours. Actual time varies with battery age and starting charge level. Contact our team to confirm timing for your setup.

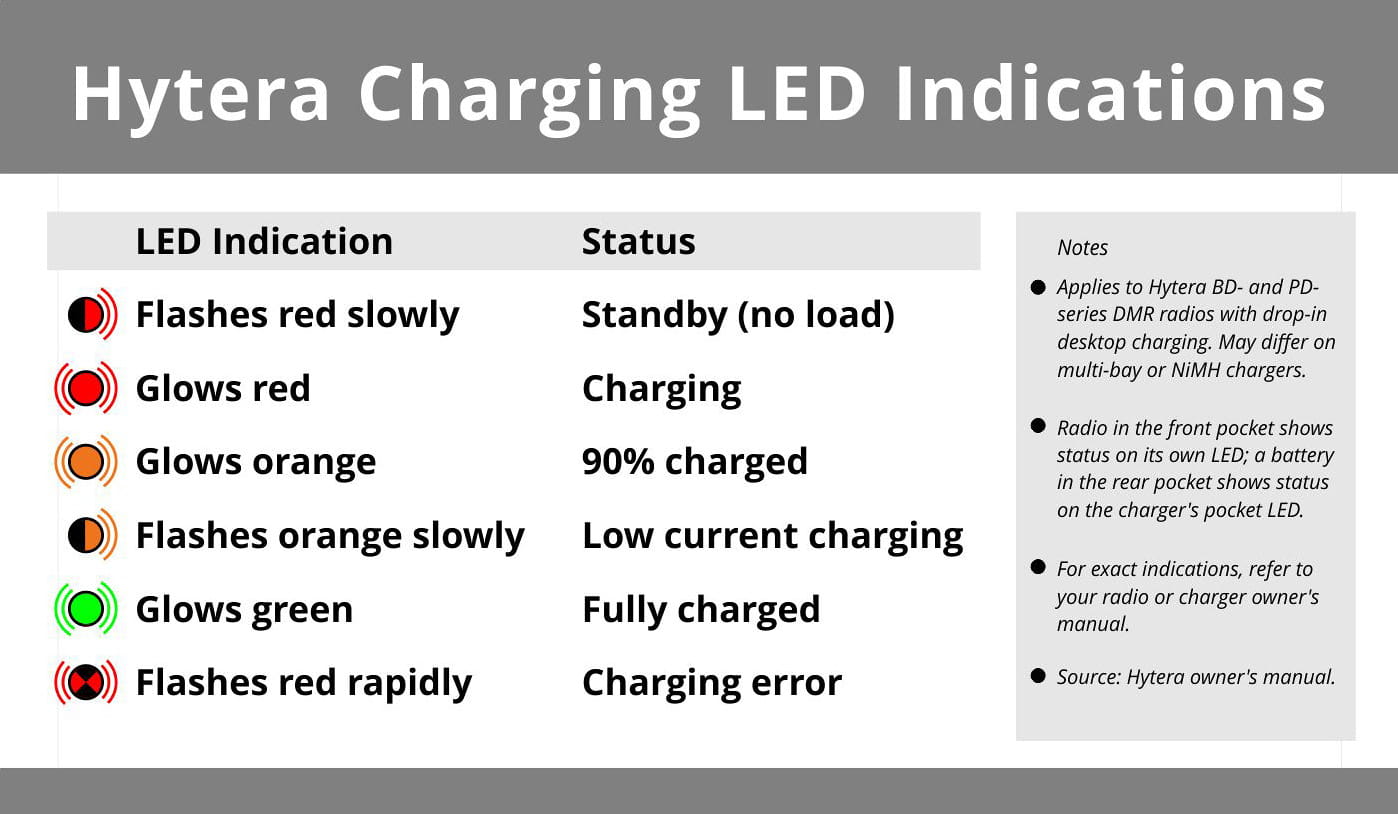

How do I know when the battery is fully charged?
he battery is fully charged when the LED glows steady green. During charging the LED glows red, then turns orange at about 90%. A rapidly flashing red LED means a charging error — reseat the radio or battery and check the PS1030 connection. When a radio charges in the front pocket, its own LED shows this status; a battery in the rear pocket is shown by the charger's pocket LED.
